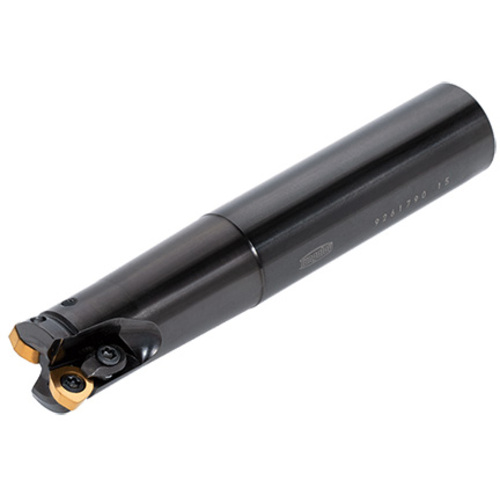

EXP09050RL
Indexable End Mill; 50 mm Dia. × 3 mm LOC × 42 mm Shank Dia. × 250 mm OAL ; Round Shank ; 20 Degrees

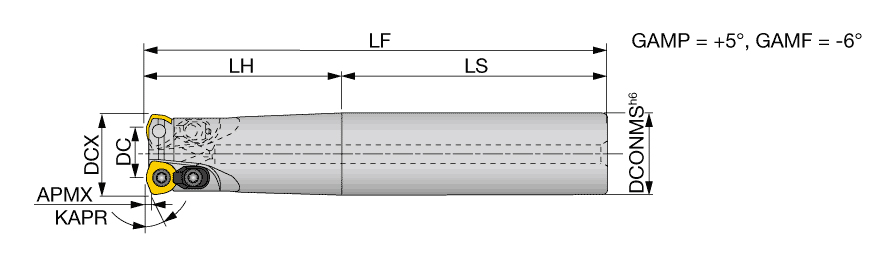

| Cutting Diameter (DC/DCX) | 50 mm | Head Length (LH) | 50 mm |
| Cutting Diameter (DC) | 50 mm | Functional Length (LF) | 250 mm |
| Cutting Item Count (CICT) | 2 | Tool Type | Fast Feed Endmill |
| Depth of Cut Maximum (APMX) | 3 mm | Tool Cutting Edge Angle (KAPR) | 20 Degrees |
| Overall Length (OAL) | 250 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | High Feed Milling | | Shank Length (LS) | 200 mm |
| Connection Diameter Machine Side (DCONMS) | 42 mm | Cutting Diameter Maximum (DCX) | 50 mm |
| Master Insert Identification (MIID) | WPMT090725ZPR-ML |
Product Features
| Family Description | Super high feed endmill | Country of Origin | Japan |
Shipping Info
Package Weight
6.273
