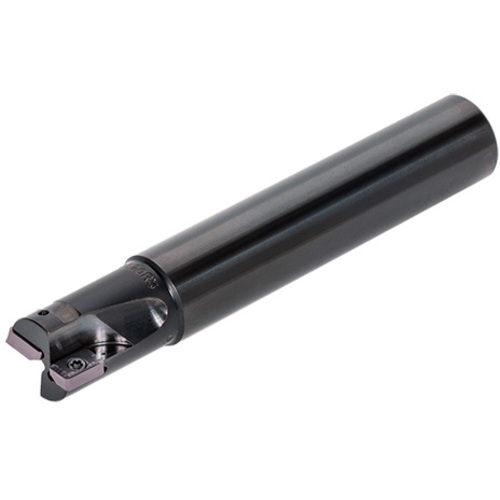

EVX16050RSA
Indexable End Mill; 50 mm Dia. × 15 mm LOC × 42 mm Shank Dia. × 210 mm OAL ; Round Shank ; 90 Degrees

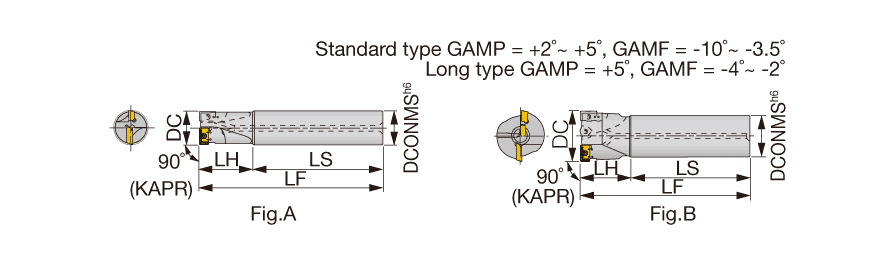

| Cutting Diameter (DC/DCX) | 50 mm | Head Length (LH) | 50 mm |
| Cutting Diameter (DC) | 50 mm | Functional Length (LF) | 210 mm |
| Cutting Item Count (CICT) | 3 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 15 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 210 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | Shoulder Milling | | Shank Length (LS) | 160 mm |
| Connection Diameter Machine Side (DCONMS) | 42 mm | Cutting Diameter Maximum (DCX) | 50 mm |
| Master Insert Identification (MIID) | XXMU16X508PR-MJ |
Product Features
| Family Description | Multi purpose endmills with center edge in medium diameter | Country of Origin | Japan |
Shipping Info
Package Weight
5.272
