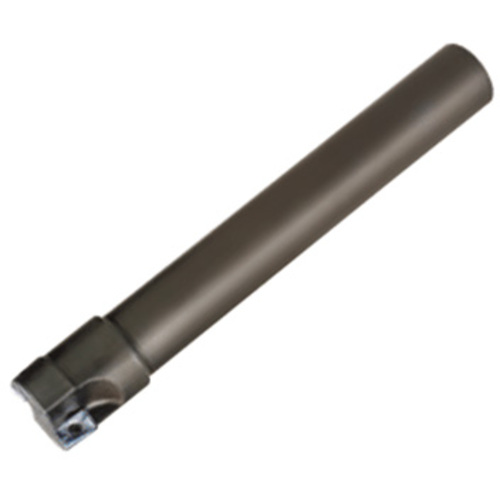

EPS17063RL

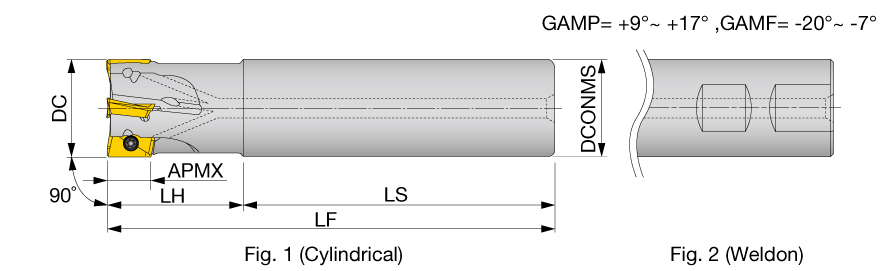

Indexable End Mill; 63 mm Dia. × 16 mm LOC × 42 mm Shank Dia. × 360 mm OAL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 63 mm | Head Length (LH) | 50 mm |
| Cutting Diameter (DC) | 63 mm | Functional Length (LF) | 360 mm |
| Cutting Item Count (CICT) | 3 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 16 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 360 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | Shoulder Milling | | Shank Length (LS) | 310 mm |
| Connection Diameter Machine Side (DCONMS) | 42 mm | Cutting Diameter Maximum (DCX) | 63 mm |
| Master Insert Identification (MIID) | ASMT170508PDPR-MJ |
Product Features
| Family Description | Shoulder square endmills with ASMT/ASGT17 inserts | Country of Origin | Japan |
Shipping Info
Package Weight
9.967
