EWD07020R

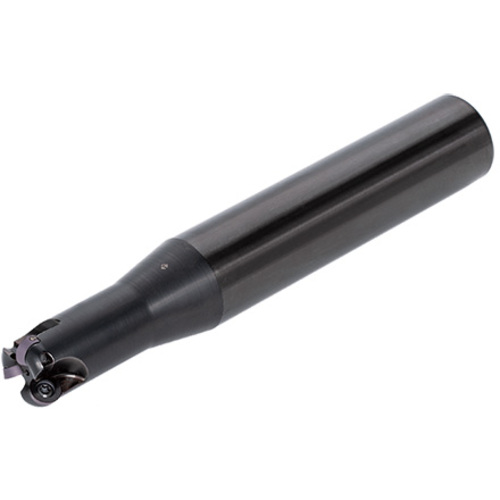

Indexable End Mill; 13 mm Dia. × 3.5 mm LOC × 25 mm Shank Dia. × 170 mm OAL

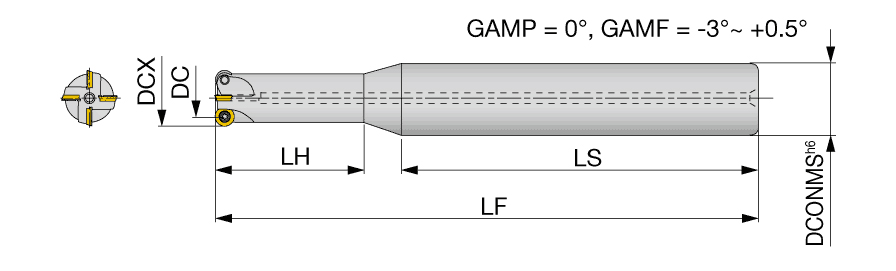

| Cutting Diameter (DC/DCX) | 13 mm | Head Length (LH) | 40 mm |
| Cutting Diameter (DC) | 13 mm | Functional Length (LF) | 170 mm |
| Cutting Item Count (CICT) | 4 | Tool Type | Corner rounding endmills |
| Depth of Cut Maximum (APMX) | 3.5 mm | Measurement Type | Metric |
| Overall Length (OAL) | 170 mm | Body Material | Steel |
| Application | | Profile Milling | | Shank Length (LS) | 120 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Cutting Diameter Maximum (DCX) | 20 mm |
| Master Insert Identification (MIID) | RDMW0702M0 |
Product Features
| Family Description | Indexable endmills with buttom inserts of 2.5, 3.5, and 5mm radius | Country of Origin | JAPAN |
Shipping Info
Package Weight
1.415
