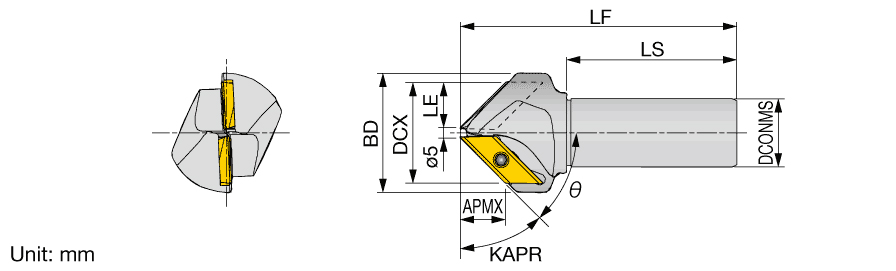

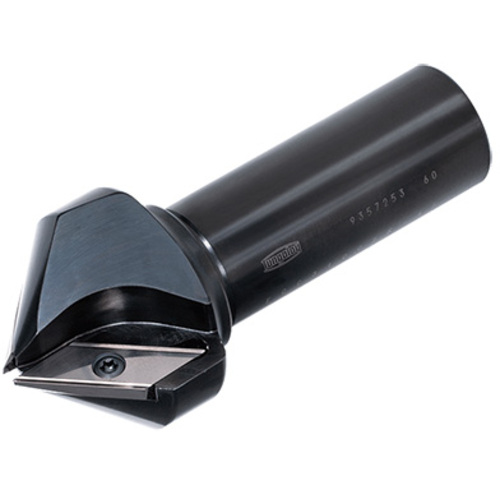

ECC31005R-45
Indexable End Mill; 46 mm Dia. × 20.5 mm LOC × 32 mm Shank Dia. × 130.1 mm OAL ; 45 Degrees
| Cutting Diameter (DC/DCX) | 46 mm | Head Length (LH) | 50.1 mm |
| Cutting Diameter (DC) | 46 mm | Functional Length (LF) | 130.1 mm |
| Cutting Item Count (CICT) | 2 | Tool Type | Chamfering endmills |
| Depth of Cut Maximum (APMX) | 20.5 mm | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Overall Length (OAL) | 130.1 mm | Measurement Type | Metric |
| Application | | Multi Functional tools | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Shank Length (LS) | 80 mm |
| Master Insert Identification (MIID) | XCET310404ER | Cutting Diameter Maximum (DCX) | 56 mm |
Product Features
| Family Description | Indexable chamfering cutter with large parallelogram insert | Country of Origin | Japan |
Shipping Info
Package Weight
2.269
