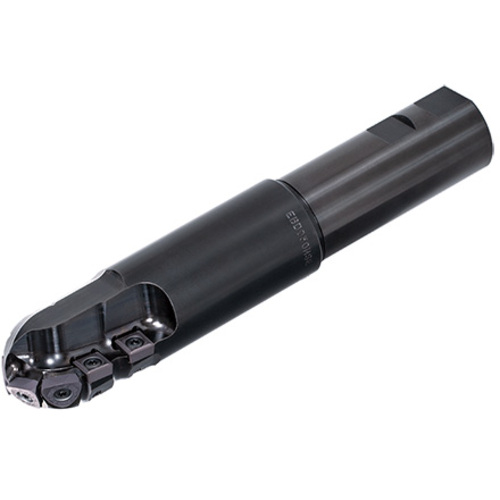

EBD050MCE

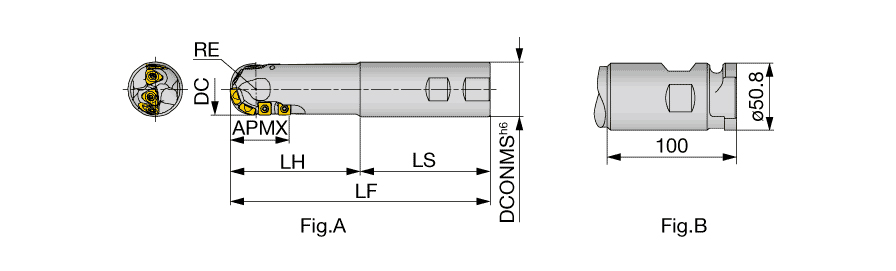

Indexable End Mill; 50 mm Dia. × 59 mm LOC × 50.8 mm Shank Dia. × 250 mm OAL
| Cutting Diameter (DC/DCX) | 50 mm | Head Length (LH) | 150 mm |
| Cutting Diameter (DC) | 50 mm | Functional Length (LF) | 250 mm |
| Cutting Item Count (CICT) | 7 | Tool Type | Ball nose endmills |
| Depth of Cut Maximum (APMX) | 59 mm | Measurement Type | Metric |
| Overall Length (OAL) | 250 mm | Body Material | Steel |
| Application | | Profile Milling | | Shank Length (LS) | 100 mm |
| Connection Diameter Machine Side (DCONMS) | 50.8 mm | Cutting Diameter Maximum (DCX) | 59 mm |
| Master Insert Identification (MIID) | ZDMT5006-MJ |
Product Features
| Family Description | Indexable ball-nose endmill for roughing | Country of Origin | JAPAN |
Shipping Info
Package Weight
7.452
