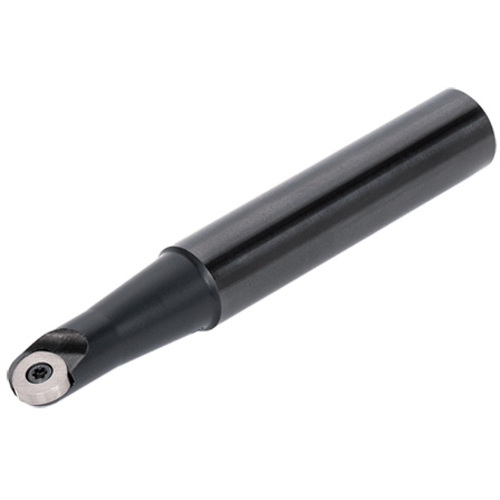

TBN1160S
Indexable End Mill; 16 mm Dia. × 8 mm LOC × 20 mm Shank Dia. × 130 mm OAL
| Cutting Diameter (DC/DCX) | 16 mm | Head Length (LH) | 25 mm |
| Cutting Diameter (DC) | 16 mm | Functional Length (LF) | 130 mm |
| Cutting Item Count (CICT) | 1 | Tool Type | Ball nose endmills |
| Depth of Cut Maximum (APMX) | 8 mm | Measurement Type | Metric |
| Overall Length (OAL) | 130 mm | Body Material | Steel |
| Application | | Profile Milling | | Shank Length (LS) | 85 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Cutting Diameter Maximum (DCX) | 16 mm |
| Master Insert Identification (MIID) | ZNCA1603FN |
Product Features
| Family Description | Indexable ball-nose endmill for semi-finishing | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.825
