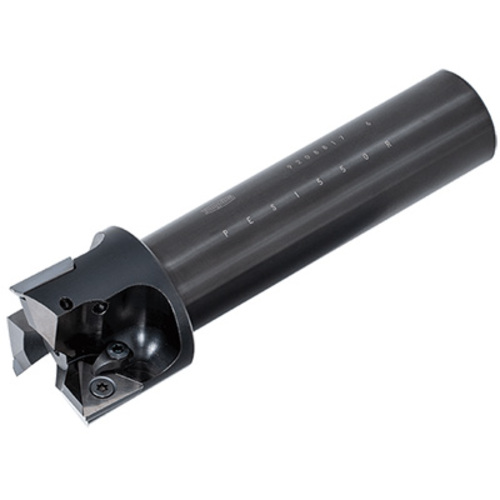

PES1535R
Indexable End Mill; 35 mm Dia. × 19 mm LOC × 32 mm Shank Dia. × 160 mm OAL ; 90 Degrees

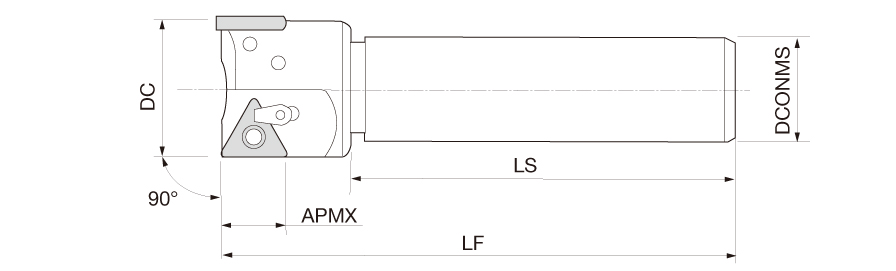

| Cutting Diameter (DC/DCX) | 35 mm | Head Length (LH) | 40 mm |
| Cutting Diameter (DC) | 35 mm | Functional Length (LF) | 160 mm |
| Cutting Item Count (CICT) | 2 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 19 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 160 mm | Measurement Type | Metric |
| Application | | Shoulder Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Shank Length (LS) | 120 mm |
| Master Insert Identification (MIID) | TPMA432TNW1 |
Product Features
| Family Description | Square shoulder endmills with triangle inserts | Country of Origin | JAPAN |
Shipping Info
Package Weight
2.361
