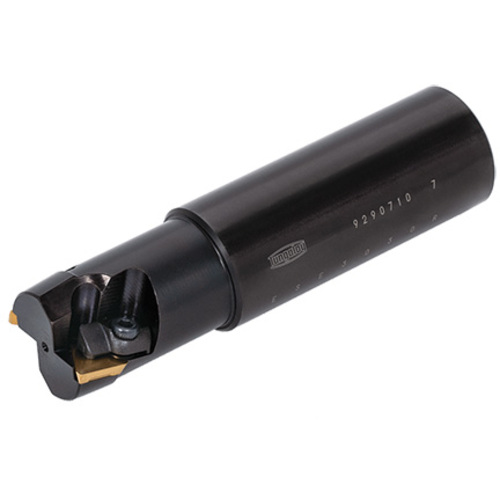

ESE3025R
Indexable End Mill; 25 mm Dia. × 8 mm LOC × 25 mm Shank Dia. × 115 mm OAL ; 90 Degrees

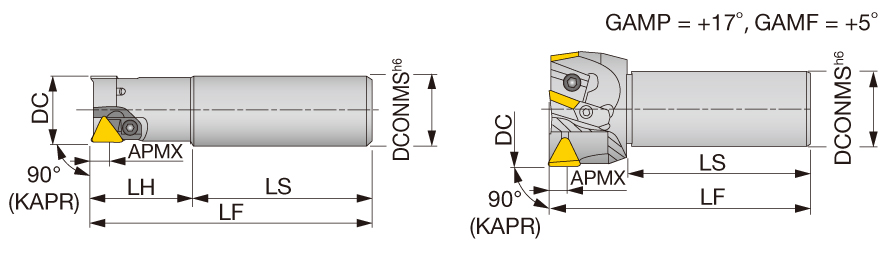

| Cutting Diameter (DC/DCX) | 25 mm | Head Length (LH) | 35 mm |
| Cutting Diameter (DC) | 25 mm | Functional Length (LF) | 115 mm |
| Cutting Item Count (CICT) | 1 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 8 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 115 mm | Measurement Type | Metric |
| Application | | Shoulder Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Shank Length (LS) | 80 mm |
| Master Insert Identification (MIID) | TEEN32ZTR |
Product Features
| Family Description | Shoulder square endmills with wedge clamped high-posi triangle inserts | Country of Origin | JAPAN |
| Remarks | These items are not irregular pitch spec. APMX may vary with insert type. For APMX, please refer to insert size table. |
Shipping Info
Package Weight
0.946
