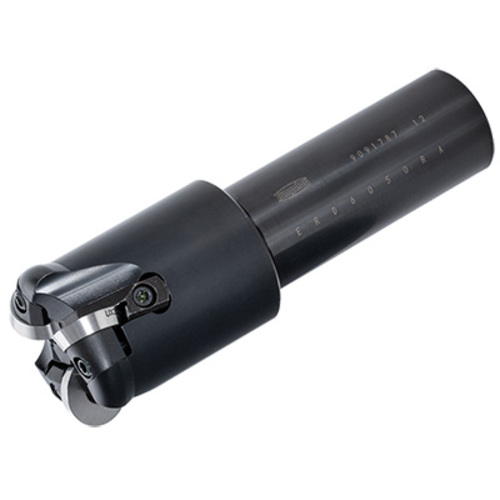

ERD6050RA

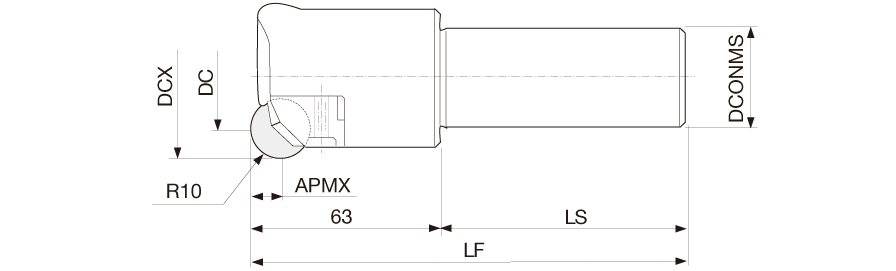

Indexable End Mill; 30 mm Dia. × 10 mm LOC × 32 mm Shank Dia. × 143 mm OAL
| Cutting Diameter (DC/DCX) | 30 mm | Head Length (LH) | 63 mm |
| Cutting Diameter (DC) | 30 mm | Functional Length (LF) | 143 mm |
| Cutting Item Count (CICT) | 3 | Tool Type | Corner rounding endmills |
| Depth of Cut Maximum (APMX) | 10 mm | Measurement Type | Metric |
| Overall Length (OAL) | 143 mm | Body Material | Steel |
| Application | | Face Milling | | Shank Length (LS) | 80 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Cutting Diameter Maximum (DCX) | 50 mm |
| Master Insert Identification (MIID) | RDKN2004TN |
Product Features
| Family Description | Indexable endmill with 20mm button insert | Country of Origin | JAPAN |
| Remarks | Pocketing up to 4 mm depth is possible. |
Shipping Info
Package Weight
2.829
