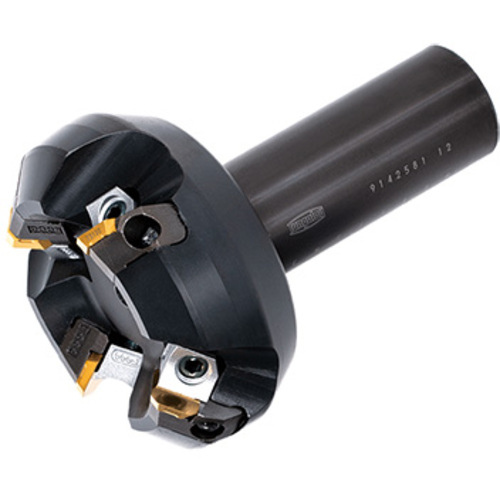

EME4463R

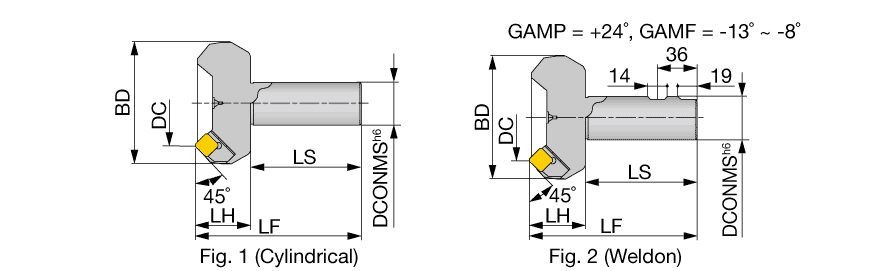

Indexable End Mill; 63 mm Dia. × 4 mm LOC × 32 mm Shank Dia. × 120.2 mm OAL ; Round Shank ; 45 Degrees
| Cutting Diameter (DC/DCX) | 63 mm | Head Length (LH) | 40 mm |
| Cutting Diameter (DC) | 63 mm | Functional Length (LF) | 120.2 mm |
| Cutting Item Count (CICT) | 4 | Tool Type | 45 Facemills |
| Depth of Cut Maximum (APMX) | 4 mm | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Overall Length (OAL) | 120.2 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | Face Milling | | Shank Length (LS) | 80 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Cutting Diameter Maximum (DCX) | 87.2 mm |
| Master Insert Identification (MIID) | SEEN1203AGTN |
Product Features
| Family Description | 45 deg endmills with wedge clamped high-posi square inserts | Country of Origin | JAPAN |
Shipping Info
Package Weight
4.253
