EFP4050R
Indexable End Mill; 50 mm Dia. × 0.1 mm LOC × 32 mm Shank Dia. × 120 mm OAL ; 0.5 Degrees

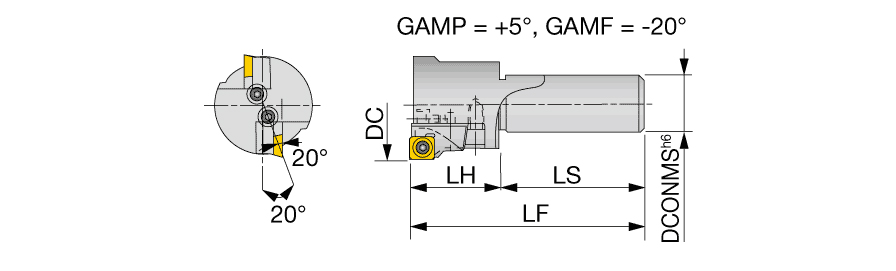

| Cutting Diameter (DC/DCX) | 50 mm | Head Length (LH) | 40 mm |
| Cutting Diameter (DC) | 50 mm | Functional Length (LF) | 120 mm |
| Cutting Item Count (CICT) | 1 | Tool Type | 90 Facemills |
| Depth of Cut Maximum (APMX) | 0.1 mm | Tool Cutting Edge Angle (KAPR) | 0.5 Degrees |
| Overall Length (OAL) | 120 mm | Measurement Type | Metric |
| Application | | Face Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Shank Length (LS) | 80 mm |
| Master Insert Identification (MIID) | SPHA435FNW | Cutting Diameter Maximum (DCX) | 50 mm |
Product Features
| Family Description | Endmills with adjustable structure for super finishing | Country of Origin | JAPAN |
Shipping Info
Package Weight
2.330
