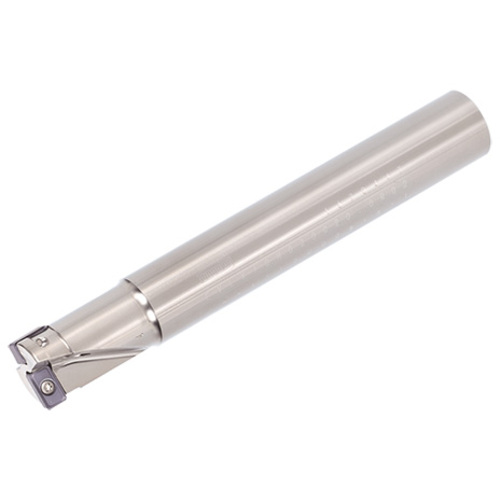

EVLX08M016C16.0R02

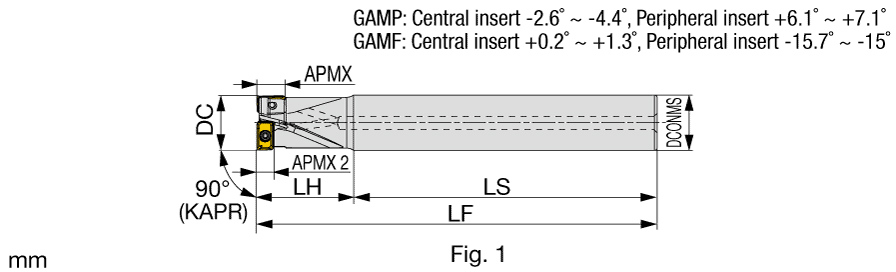

Indexable End Mill; 16 mm Dia. × 7 mm LOC × 16 mm Shank Dia. × 130 mm OAL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 16 mm | Master Insert Identification (MIID) | LXMU080304PER-MM |
| Cutting Diameter (DC) | 16 mm | Head Length (LH) | 30 mm |
| Cutting Item Count (CICT) | 2 | Functional Length (LF) | 130 mm |
| Depth of Cut Maximum (APMX) | 7 mm | Tool Type | 90 indexable endmills |
| Overall Length (OAL) | 130 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Shank Type | Round | Measurement Type | Metric |
| Application | | Multi Functional tools | Shoulder Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Cutting Diameter Maximum (DCX) | 16 mm |
Product Features
| Family Description | Multi-function endmill, shank type, with center cutting edge | Country of Origin | JAPAN |
