EXWX03U1.25C1.25R05L
Indexable End Mill; 0.9606″ Dia. × 0.039″ LOC × 1-1/4″ Shank Dia. × 8″ OAL ; Round Shank ; 12 Degrees

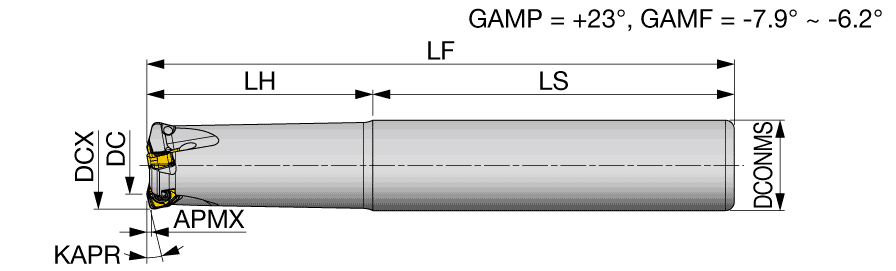

| Cutting Diameter (DC/DCX) | 0.9606″ | Master Insert Identification (MIID) | WXMU0303ZER-MM |
| Cutting Diameter (DC) | 0.9606″ | Head Length (LH) | 5″ |
| Cutting Item Count (CICT) | 5 | Functional Length (LF) | 8″ |
| Depth of Cut Maximum (APMX) | 0.039″ | Tool Type | 90 indexable endmills |
| Overall Length (OAL) | 8″ | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Shank Type | Round | Measurement Type | Inch |
| Application | | High Feed Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Cutting Diameter Maximum (DCX) | 1-1/4″ |
Product Features
| Family Description | High feed milling endmill, shank type, with 6-corner double sided inserts | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
