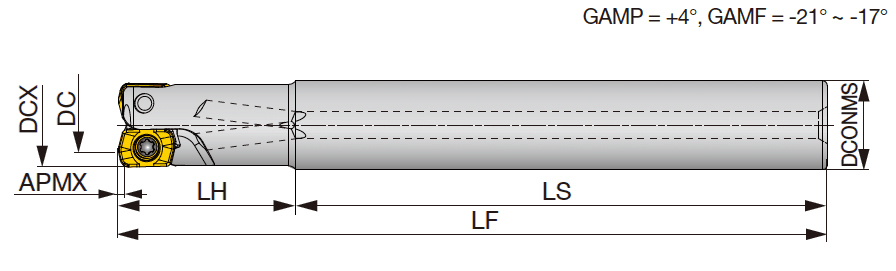

EXLS02U1.00C1.00LH4.00R06
Indexable End Mill; 0.8504″ Dia. × 0.019″ LOC × 1″ Shank Dia. × 7″ OAL ; Round Shank ; 12 Degrees
| Cutting Diameter (DC/DCX) | 0.8504″ | Master Insert Identification (MIID) | LSMT0202ZER-HM |
| Cutting Diameter (DC) | 0.8504″ | Head Length (LH) | 4″ |
| Cutting Item Count (CICT) | 6 | Functional Length (LF) | 7″ |
| Depth of Cut Maximum (APMX) | 0.019″ | Tool Type | CUTTER - SHANK TYPE |
| Overall Length (OAL) | 7″ | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Shank Type | Round | Measurement Type | Inch |
| Application | | High Feed Milling | Profile Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1″ | Cutting Diameter Maximum (DCX) | 1″ |
Product Features
| Family Description | High feed milling endmills with LSMT inserts | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
