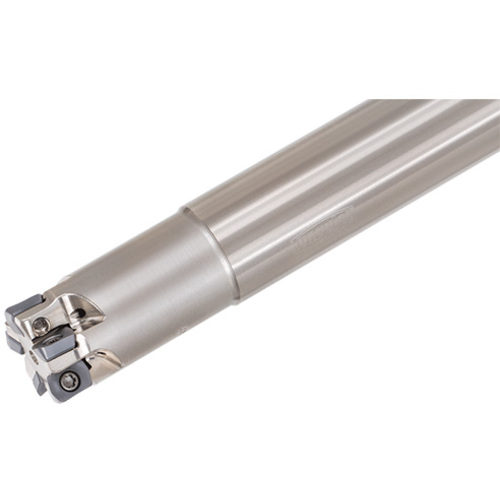

EXLS02M020C20.0LH50R05
Indexable End Mill; 16.31 mm Dia. × 0.5 mm LOC × 20 mm Shank Dia. × 130 mm OAL ; Round Shank ; 12 Degrees

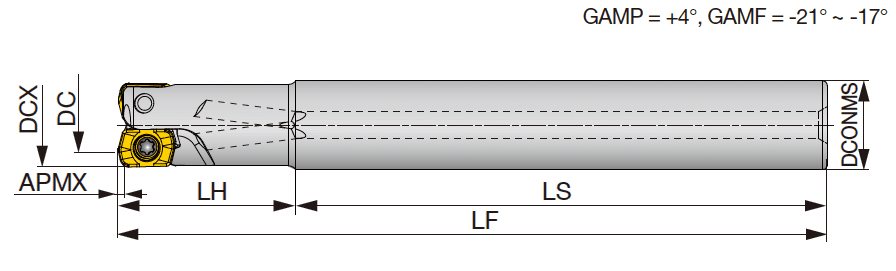

| Cutting Diameter (DC/DCX) | 16.31 mm | Master Insert Identification (MIID) | LSMT0202ZER-HM |
| Cutting Diameter (DC) | 16.31 mm | Head Length (LH) | 50 mm |
| Cutting Item Count (CICT) | 5 | Functional Length (LF) | 130 mm |
| Depth of Cut Maximum (APMX) | 0.5 mm | Tool Type | CUTTER - SHANK TYPE |
| Overall Length (OAL) | 130 mm | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Shank Type | Round | Measurement Type | Metric |
| Application | | High Feed Milling | Profile Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Cutting Diameter Maximum (DCX) | 20 mm |
Product Features
| Family Description | High feed milling endmills with LSMT inserts | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
