EXSW09U1.00C1.00R03

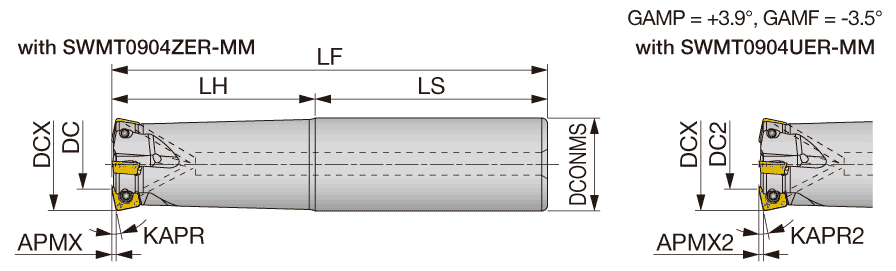

Indexable End Mill; 1″ Dia. × 0.059″ LOC × 1″ Shank Dia. × 5-1/2″ OAL ; Round Shank ; 12 Degrees
| Cutting Diameter (DC/DCX) | 1″ | Master Insert Identification (MIID) | SWMT0904ZER-MM |
| Cutting Diameter (DC) | 1″ | Head Length (LH) | 2-1/2″ |
| Cutting Item Count (CICT) | 3 | Functional Length (LF) | 5-1/2″ |
| Depth of Cut Maximum (APMX) | 0.059″ | Tool Type | CUTTER - SHANK TYPE |
| Overall Length (OAL) | 5-1/2″ | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Shank Type | Round | Measurement Type | Inch |
| Application | | High Feed Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1″ | Cutting Diameter Maximum (DCX) | 1″ |
Product Features
| Family Description | High-feed milling cutters with 4-corner single sided inserts; Shank type | Country of Origin | Japan |
| Remarks | APMX may vary with insert type. |
Shipping Info
Package Weight
1.2
