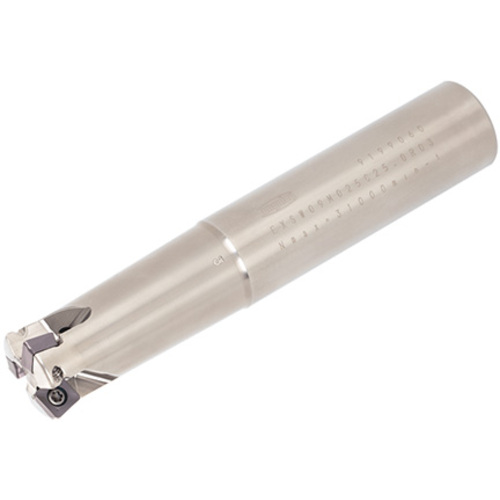

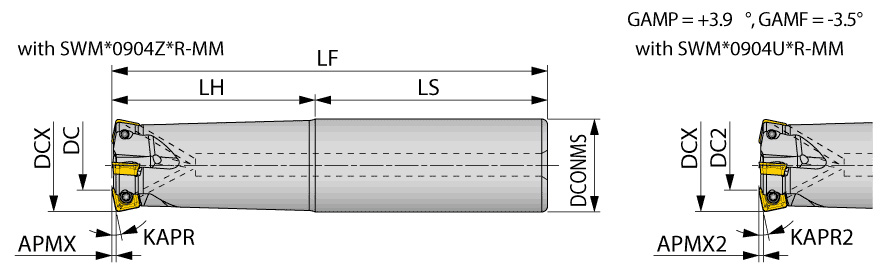

EXSW09M025C25.0R03L
Indexable End Mill; 25 mm Dia. × 1.5 mm LOC × 25 mm Shank Dia. × 180 mm OAL ; Round Shank ; 12 Degrees
| Cutting Diameter (DC/DCX) | 25 mm | Master Insert Identification (MIID) | SWMT0904ZER-MM |
| Cutting Diameter (DC) | 25 mm | Head Length (LH) | 100 mm |
| Cutting Item Count (CICT) | 3 | Functional Length (LF) | 180 mm |
| Depth of Cut Maximum (APMX) | 1.5 mm | Tool Type | CUTTER - SHANK TYPE |
| Overall Length (OAL) | 180 mm | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Shank Type | Round | Measurement Type | Metric |
| Application | | High Feed Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Cutting Diameter Maximum (DCX) | 25 mm |
Product Features
| Family Description | High-feed milling cutters with 4-corner single sided inserts; Shank type | Country of Origin | JAPAN |
| Remarks | APMX may vary with insert type. |
Shipping Info
Package Weight
0.000
