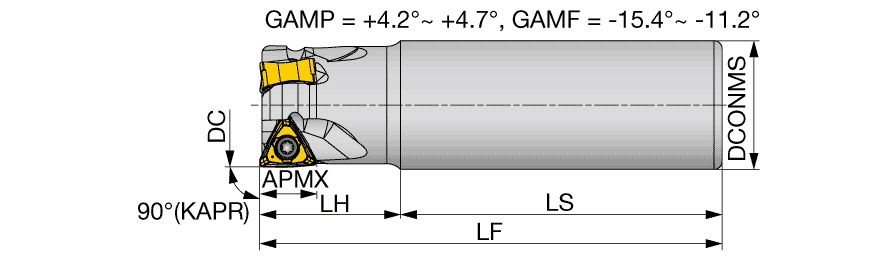

| Cutting Diameter (DC/DCX) | 20 mm | Head Length (LH) | 30 mm |
| Cutting Diameter (DC) | 20 mm | Functional Length (LF) | 100 mm |
| Cutting Item Count (CICT) | 2 | Tool Type | CUTTER - SHANK TYPE |
| Depth of Cut Maximum (APMX) | 6.5 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 100 mm | Measurement Type | Metric |
| Application | | Shoulder Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Shank Length (LS) | 70 mm |
| Master Insert Identification (MIID) | TNMU070308PER-MJ | Cutting Diameter Maximum (DCX) | 20 mm |
Product Features
| Family Description | Square Shoulder milling cutters with double-sided triangle insert; Shank Type | Country of Origin | JAPAN |
| Remarks | When using corner radius R0.4 inserts, add 0.22 mm to the LF and LH dimensions. |
