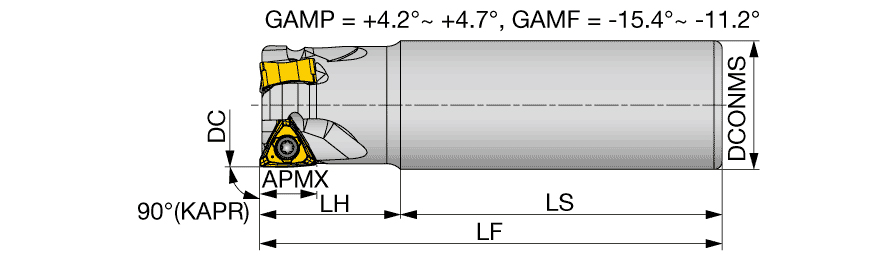

EPTN07U1.25C1.25R05
Indexable End Mill; 1-1/4″ Dia. × 0.256″ LOC × 1-1/4″ Shank Dia. × 4-1/2″ OAL ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1-1/4″ | Head Length (LH) | 1-1/2″ |
| Cutting Diameter (DC) | 1-1/4″ | Functional Length (LF) | 4-1/2″ |
| Cutting Item Count (CICT) | 5 | Tool Type | CUTTER - SHANK TYPE |
| Depth of Cut Maximum (APMX) | 0.256″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 4-1/2″ | Measurement Type | Inch |
| Application | | Shoulder Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Shank Length (LS) | 3″ |
| Master Insert Identification (MIID) | TNMU070308PER-MJ | Cutting Diameter Maximum (DCX) | 1-1/4″ |
Product Features
| Family Description | Square Shoulder milling cutters with double-sided triangle insert; Shank Type | Country of Origin | Japan |
| Remarks | When using corner radius R0.4 inserts, add 0.22 mm to the LF and LH dimensions. |
Shipping Info
Package Weight
0.08
