EXN03R020M20.0-03N

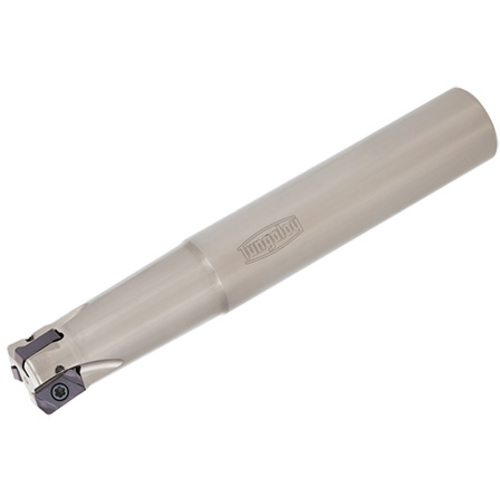

Indexable End Mill; 13.5 mm Dia. × 1 mm LOC × 20 mm Shank Dia. × 130 mm OAL ; Round Shank ; 17 Degrees

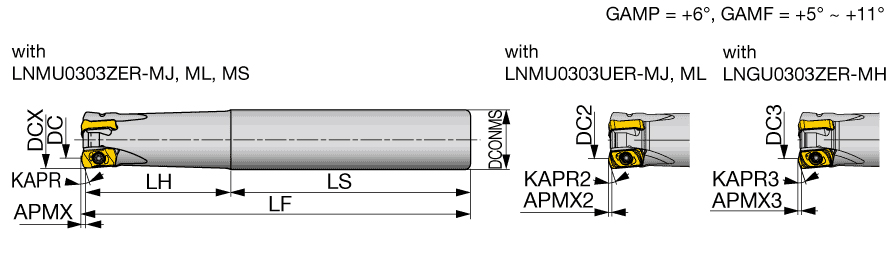

| Cutting Diameter (DC/DCX) | 13.5 mm | Master Insert Identification (MIID) | LNMU0303ZER-MJ |
| Cutting Diameter (DC) | 13.5 mm | Head Length (LH) | 50 mm |
| Cutting Item Count (CICT) | 3 | Functional Length (LF) | 130 mm |
| Depth of Cut Maximum (APMX) | 1 mm | Tool Type | 90 indexable endmills |
| Overall Length (OAL) | 130 mm | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Shank Type | Round | Measurement Type | Metric |
| Application | | High Feed Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Cutting Diameter Maximum (DCX) | 20 mm |
Product Features
| Family Description | Super high feed milling endmills with double sided inserts with 4 edges (Economical tool body without air hole) | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
Related Documentation
The standard cutting conditions table shows the conditions for standard shank type cutters.@Cutting conditions are generally limited by the rigidity and power of the machine and the rigidity of the workpiece. When setting the conditions, start from half of the values of the standard cutting conditions and then increase the value gradually while making sure the machine is running normally.@For DCX above 33 mm, slot milling, ramping or contouring is not recommended as chips may be re-cut.
