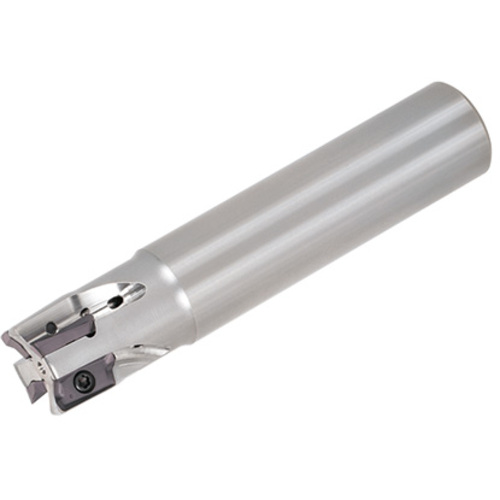

EPAV12M020C20.0R03

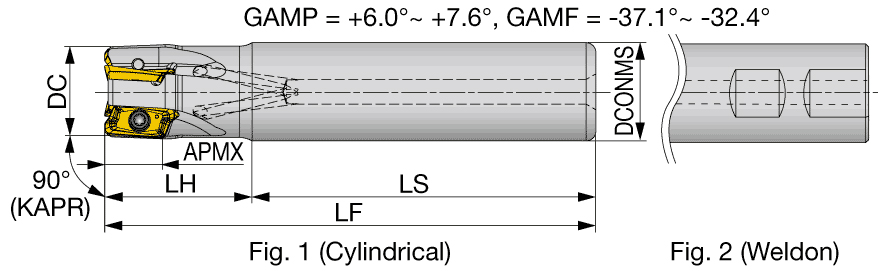

Indexable End Mill; 20 mm Dia. × 11.5 mm LOC × 20 mm Shank Dia. × 100 mm OAL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 20 mm | Master Insert Identification (MIID) | AVMT120408PDER-MM |
| Cutting Diameter (DC) | 20 mm | Head Length (LH) | 30 mm |
| Cutting Item Count (CICT) | 3 | Functional Length (LF) | 100 mm |
| Depth of Cut Maximum (APMX) | 11.5 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 100 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | Shoulder Milling | | Cutting Diameter Maximum (DCX) | 20 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
Product Features
| Family Description | Square shoulder endmill, shank type, with screw clamp system | Country of Origin | Japan |
| Remarks | APMX may vary with insert type. For APMX, please refer to insert size table. When using inserts with corner radius RE >= 2.0 mm, standard cutter bodies have to be modified "R". Please click on "More Info". Note: Inserts with a PCD or a corner radius of 2 or greater are not suitable for ramping, plunging and helical interpolation application. |
Shipping Info
Package Weight
0
Related Documentation

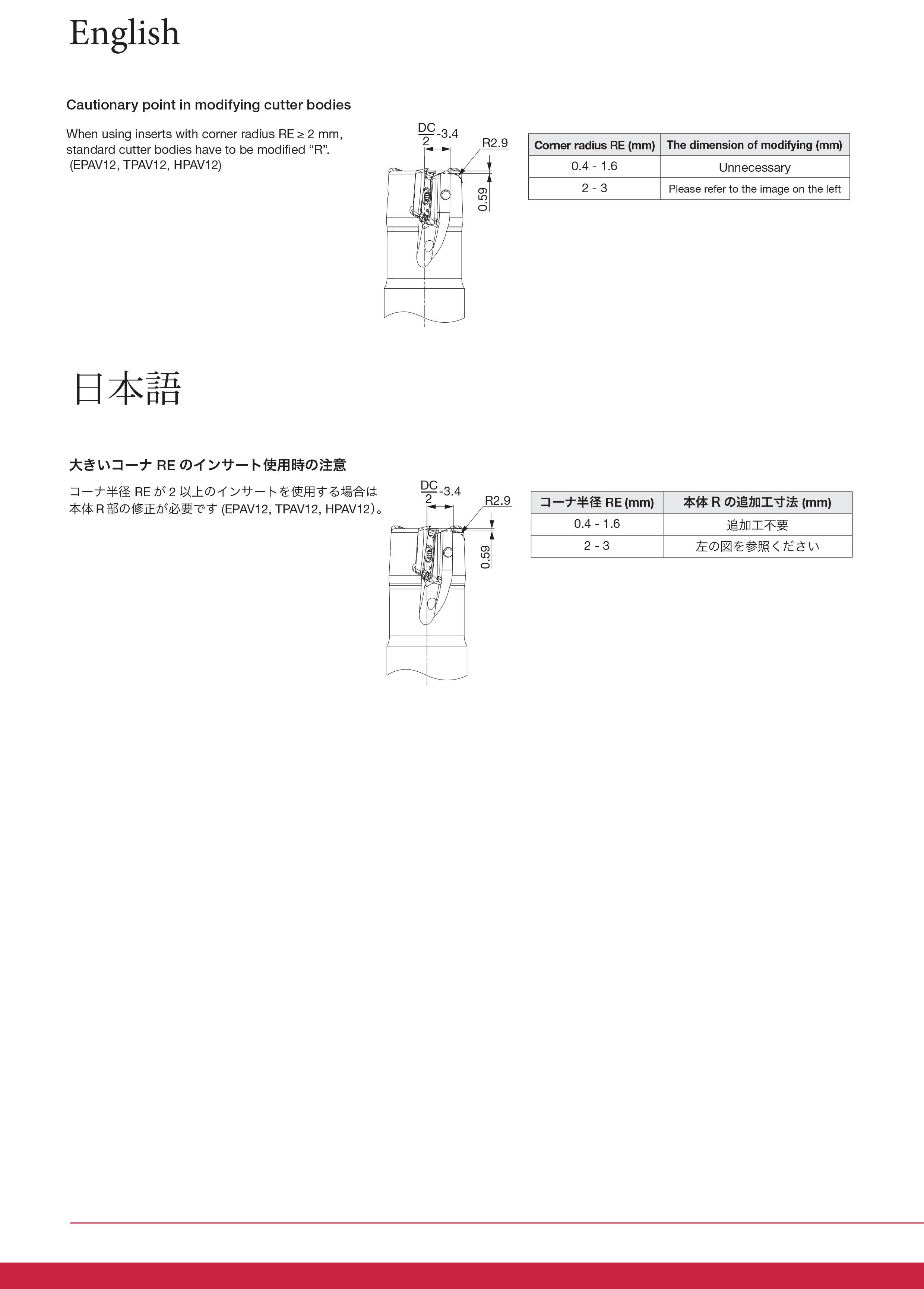

When using inserts with corner radius RE >= 2.0 mm, "R" of standard cutter bodies have to be modified to 2.0 mm.
