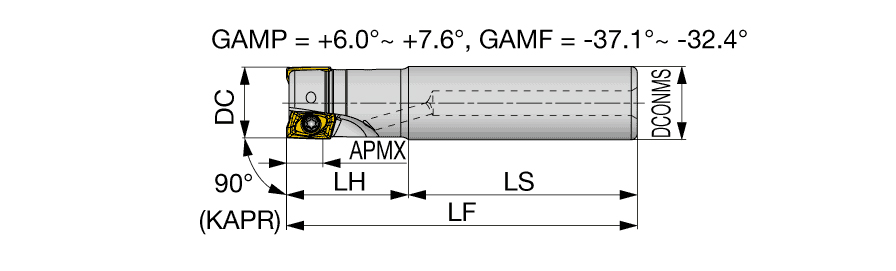

EPAV06U0.75C0.62R04
Indexable End Mill; 3/4″ Dia. × 0.236″ LOC × 5/8″ Shank Dia. × 4″ OAL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 3/4″ | Master Insert Identification (MIID) | AVGT060304PBER-MJ |
| Cutting Diameter (DC) | 3/4″ | Head Length (LH) | 1.185″ |
| Cutting Item Count (CICT) | 4 | Functional Length (LF) | 4″ |
| Depth of Cut Maximum (APMX) | 0.236″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 4″ | Measurement Type | Inch |
| Shank Type | Round | Body Material | Steel |
| Application | | Shoulder Milling | | Shank Length (LS) | 2.815″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Cutting Diameter Maximum (DCX) | 3/4″ |
Product Features
| Family Description | Square shoulder endmill, shank type, with screw clamp system | Country of Origin | Japan |
| Remarks | Note: Inserts with a PCD or a corner radius of 2.0mm or greater are not suitable for ramping, plunging and helical interpolation application. |
Shipping Info
Package Weight
1.5
