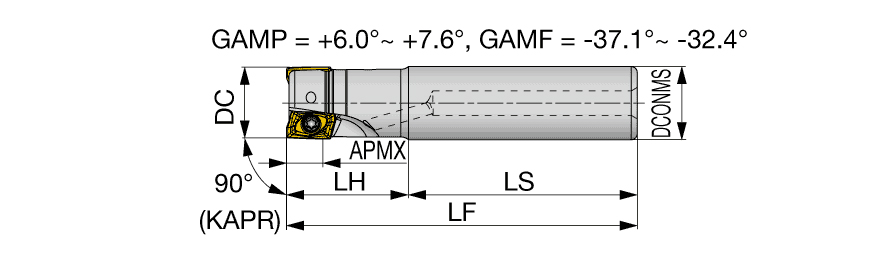

EPAV06M020C20.0R04L
Indexable End Mill; 20 mm Dia. × 6 mm LOC × 20 mm Shank Dia. × 200 mm OAL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 20 mm | Master Insert Identification (MIID) | AVGT060304PBER-MJ |
| Cutting Diameter (DC) | 20 mm | Head Length (LH) | 35 mm |
| Cutting Item Count (CICT) | 4 | Functional Length (LF) | 200 mm |
| Depth of Cut Maximum (APMX) | 6 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 200 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | Shoulder Milling | | Shank Length (LS) | 165 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Cutting Diameter Maximum (DCX) | 20 mm |
Product Features
| Family Description | Square shoulder endmill, shank type, with screw clamp system | Country of Origin | JAPAN |
| Remarks | Note: Inserts with a PCD or a corner radius of 2.0mm or greater are not suitable for ramping, plunging and helical interpolation application. |
Shipping Info
Package Weight
1.133
