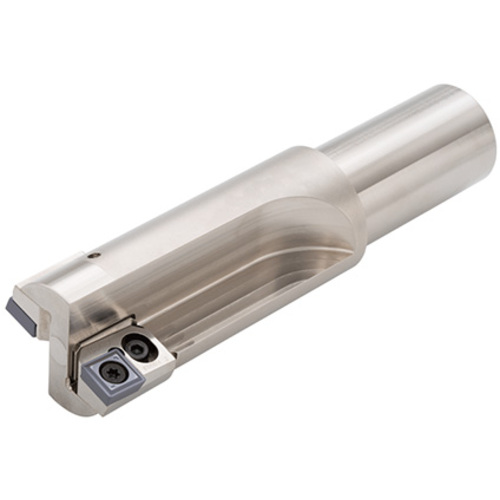

TCB500-540F32
Indexable End Mill; 54 mm Dia. × 10 mm LOC × 32 mm Shank Dia. × 165 mm OAL ; 91 Degrees

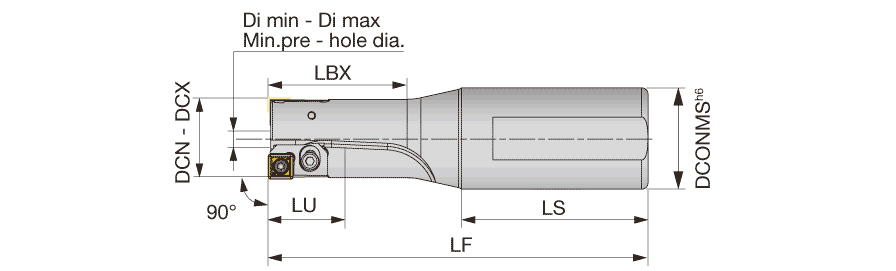

| Cutting Diameter (DC/DCX) | 54 mm | Functional Length (LF) | 165 mm |
| Cutting Item Count (CICT) | 2 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 10 mm | Tool Cutting Edge Angle (KAPR) | 91 Degrees |
| Overall Length (OAL) | 165 mm | Measurement Type | Metric |
| Application | | Multi Functional tools | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Shank Length (LS) | 59 mm |
| Master Insert Identification (MIID) | SPMM432ER-CG | Cutting Diameter Maximum (DCX) | 54 mm |
| Head Length (LH) | 106 mm |
Product Features
| Family Description | Indexable counter boring endmill cartridge type | Country of Origin | JAPAN |
| Remarks | The cartridge sets and shim plates are included. |
Shipping Info
Package Weight
0.000
