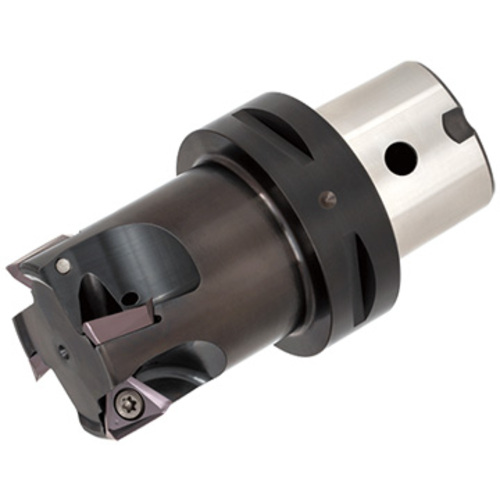

C4EPA10M035R03L065
Indexable End Mill; 35 mm Dia. × 10 mm LOC × 40 mm Shank Dia. ; 90 Degrees

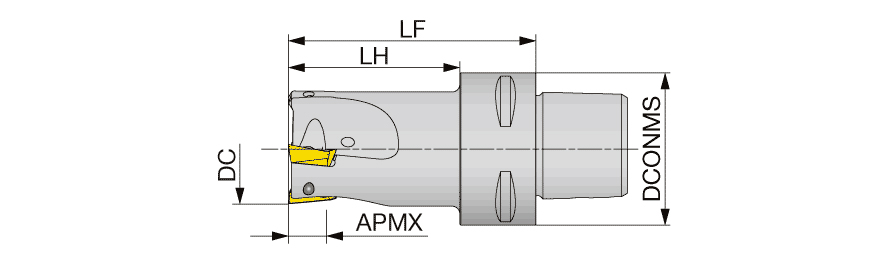

| Cutting Diameter (DC/DCX) | 35 mm | Head Length (LH) | 45 mm |
| Cutting Diameter (DC) | 35 mm | Functional Length (LF) | 65 mm |
| Cutting Item Count (CICT) | 3 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 10 mm | Measurement Type | Metric |
| Application | | Face contact interface | Shoulder Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Cutting Diameter Maximum (DCX) | 35 mm |
| Master Insert Identification (MIID) | TOMT100404PDER-MJ |
Product Features
| Family Description | TungTri square shoulder mills, tool dia. 32 - 50 mm | Country of Origin | JAPAN |
| Remarks | Applicable for 7 MPa coolant |
Shipping Info
Package Weight
1.440
