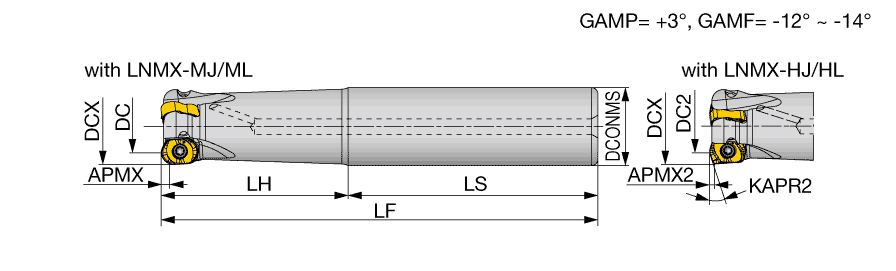

EXLN05M032C32.0R04
Indexable End Mill; 32 mm Dia. × 5 mm LOC × 32 mm Shank Dia. × 150 mm OAL ; Round Shank
| Cutting Diameter (DC/DCX) | 32 mm | Master Insert Identification (MIID) | LNMX0506R5-MJ |
| Cutting Diameter (DC) | 32 mm | Head Length (LH) | 70 mm |
| Cutting Item Count (CICT) | 4 | Functional Length (LF) | 150 mm |
| Depth of Cut Maximum (APMX) | 5 mm | Tool Type | CUTTER - SHANK TYPE |
| Overall Length (OAL) | 150 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | High Feed Milling | Profile Milling | | Shank Length (LS) | 80 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Cutting Diameter Maximum (DCX) | 32 mm |
Product Features
| Family Description | Radius cutter with double-sided insert; Shank type | Country of Origin | JAPAN |
| Remarks | APMX may vary with insert type. |
Shipping Info
Package Weight
0.000
