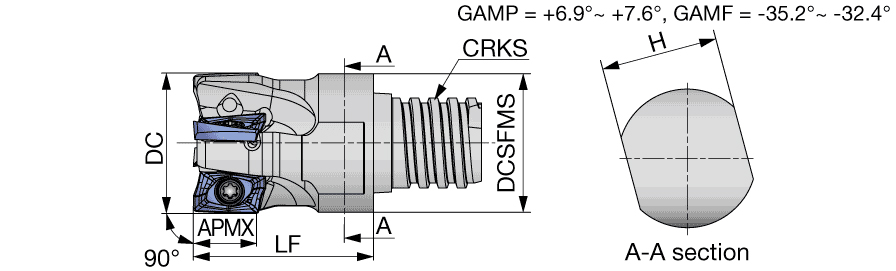

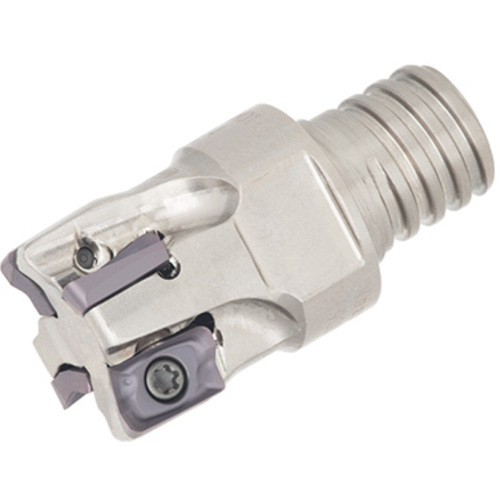

HPAV06M012S08R03
Indexable End Mill; 12 mm Dia. × 6 mm LOC ; 90 Degrees
| Cutting Diameter (DC/DCX) | 12 mm | Tool Type | CUTTER - MODULAR TYPE |
| Cutting Diameter (DC) | 12 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Item Count (CICT) | 3 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 6 mm | Body Material | Steel |
| Application | | Shoulder Milling | | Connection Retention Knob Thread Size (CRKS) | S08 |
| Master Insert Identification (MIID) | AVGT060304PBER-MJ | Shank Height (H) | 10 mm |
| Functional Length (LF) | 18 mm | Cutting Diameter Maximum (DCX) | 12 mm |
Product Features
| Family Description | Square shoulder milling cutter in small diameter; Modular head with TungMeister threaded adaptation | Country of Origin | JAPAN |
| Remarks | Shank types: VSSD, VTSD, VSC, VSTD, VER For shank details, please refer to TR381 TungMeister For connections between metric shank and TungMeister thread, please use VAD M type connector Note: Inserts with a PCD or a corner radius of 2.0mm or greater are not suitable for ramping, plunging and helical interpolation application. Wrench sold separately. |
Shipping Info
Package Weight
0.161
