EPTN12M032C32.0R02N

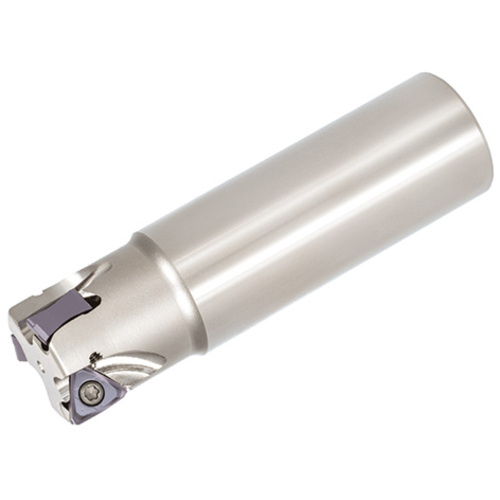

Indexable End Mill; 32 mm Dia. × 11 mm LOC × 32 mm Shank Dia. × 115 mm OAL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 32 mm | Head Length (LH) | 35 mm |
| Cutting Diameter (DC) | 32 mm | Functional Length (LF) | 115 mm |
| Cutting Item Count (CICT) | 2 | Tool Type | CUTTER - SHANK TYPE |
| Depth of Cut Maximum (APMX) | 11 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 115 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | Shoulder Milling | | Shank Length (LS) | 80 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Cutting Diameter Maximum (DCX) | 32 mm |
| Master Insert Identification (MIID) | TNMU120708PER-MJ |
Product Features
| Family Description | Square Shoulder milling cutters with double-sided triangle insert; Shank Type | Country of Origin | JAPAN |
| Remarks | Subtract 0.1 mm (R1.6) or 0.23 mm (R2) to LH and LF measurements when R1.6 or R2 insert is used. |
Shipping Info
Package Weight
1.687
