EASD05M006C12.0R01
Indexable End Mill; 12 mm Dia. × 3 mm LOC × 12 mm Shank Dia. × 100 mm OAL ; 45 Degrees

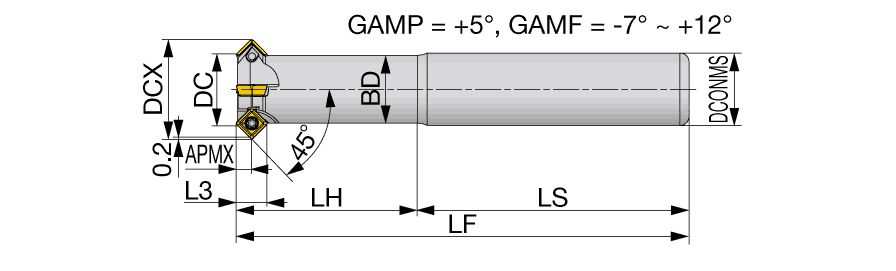

| Cutting Diameter (DC/DCX) | 12 mm | Head Length (LH) | 40 mm |
| Cutting Diameter (DC) | 12 mm | Functional Length (LF) | 100 mm |
| Cutting Item Count (CICT) | 1 | Tool Type | Chamfering endmills |
| Depth of Cut Maximum (APMX) | 3 mm | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Overall Length (OAL) | 100 mm | Measurement Type | Metric |
| Application | | Multi Functional tools | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Shank Length (LS) | 60 mm |
| Master Insert Identification (MIID) | SDMT050204PN-MJ | Cutting Diameter Maximum (DCX) | 12 mm |
Product Features
| Family Description | Chamfering endmills with SDMT/SDHT05 inserts | Country of Origin | Japan |
| Remarks | The minimum chamfering diameter (DC) measures up to the point where the insert's nose radius ends. This will offset the total tool length by shortening 0.3 mm. |
Shipping Info
Package Weight
1.5
