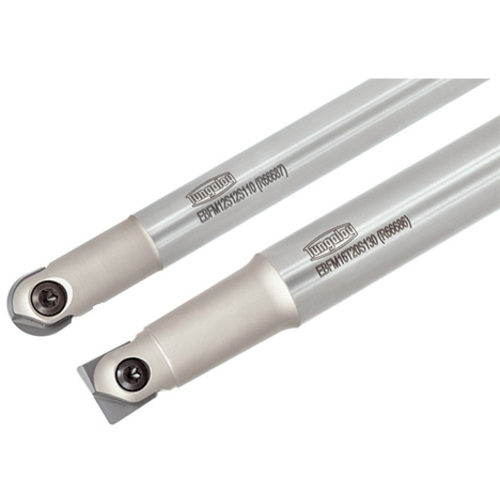

EBFM16S16C220
Indexable End Mill; 16 mm Dia. × 8 mm LOC × 16 mm Shank Dia. × 220 mm OAL

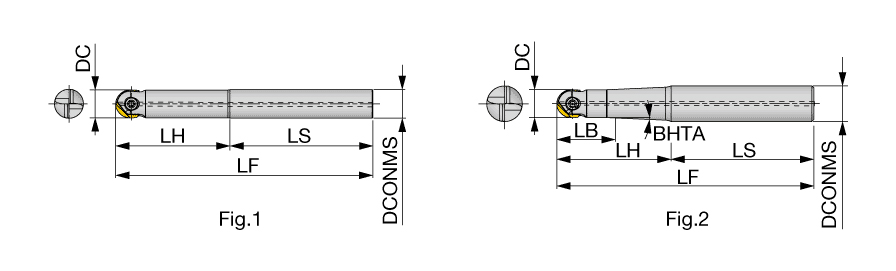

| Cutting Diameter (DC/DCX) | 16 mm | Head Length (LH) | 150 mm |
| Cutting Diameter (DC) | 16 mm | Functional Length (LF) | 220 mm |
| Cutting Item Count (CICT) | 1 | Tool Type | Ball nose endmills |
| Depth of Cut Maximum (APMX) | 8 mm | Measurement Type | Metric |
| Overall Length (OAL) | 220 mm | Body Material | Carbide |
| Application | | Profile Milling | | Shank Length (LS) | 70 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Cutting Diameter Maximum (DCX) | 16 mm |
| Master Insert Identification (MIID) | ZFBM160R00-MJ |
Product Features
| Family Description | Indexable endmills for high precision finish. Each tool can carry various milling insert geometries. | Country of Origin | S.Korea |
Shipping Info
Package Weight
2.58
