EXN03R028M25.0-04
Indexable End Mill; 28 mm Dia. × 1 mm LOC × 25 mm Shank Dia. × 140 mm OAL ; Round Shank ; 17 Degrees

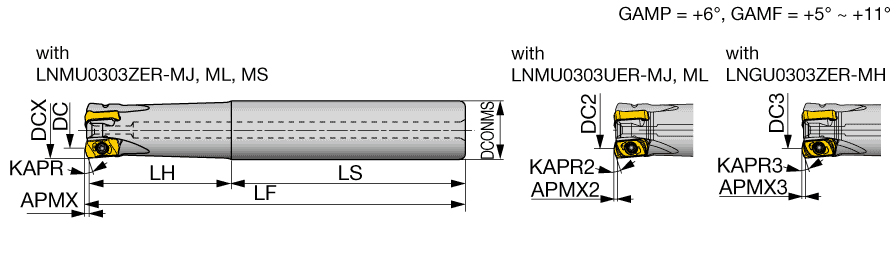

| Cutting Diameter (DC/DCX) | 28 mm | Head Length (LH) | 60 mm |
| Cutting Diameter (DC) | 28 mm | Functional Length (LF) | 140 mm |
| Cutting Item Count (CICT) | 4 | Tool Type | Fast Feed Endmill |
| Depth of Cut Maximum (APMX) | 1 mm | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Overall Length (OAL) | 140 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | High Feed Milling | | Shank Length (LS) | 80 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Cutting Diameter Maximum (DCX) | 28 mm |
| Master Insert Identification (MIID) | LNMU0303ZER-MJ |
Product Features
| Family Description | Super high feed milling endmills with double sided inserts with 4 edges (Center-through coolant) | Country of Origin | JAPAN |
Shipping Info
Package Weight
1.184
Related Documentation
The standard cutting conditions table shows the conditions for standard shank type cutters.@Cutting conditions are generally limited by the rigidity and power of the machine and the rigidity of the workpiece. When setting the conditions, start from half of the values of the standard cutting conditions and then increase the value gradually while making sure the machine is running normally.@For DCX above 33 mm, slot milling, ramping or contouring is not recommended as chips may be re-cut.
