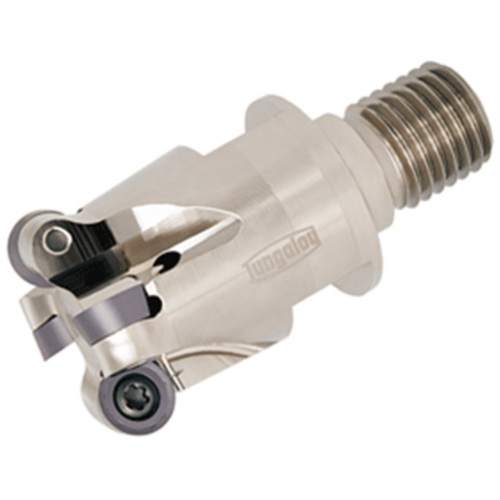

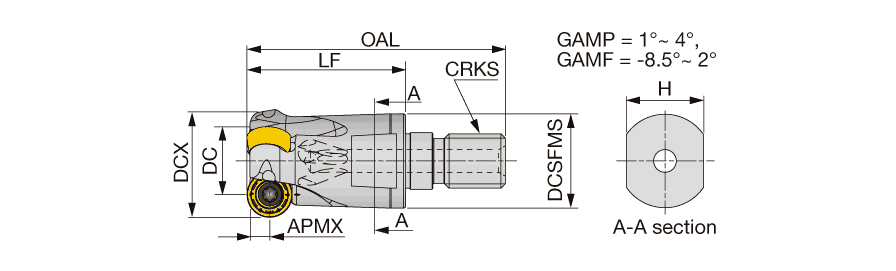

HRP10R032MM16-04
| Cutting Diameter (DC/DCX) | 22 mm | Functional Length (LF) | 40 mm |
| Cutting Diameter (DC) | 22 mm | Tool Type | Corner rounding endmills |
| Cutting Item Count (CICT) | 4 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 5 mm | Body Material | Steel |
| Overall Length (OAL) | 63 mm | Connection Retention Knob Thread Size (CRKS) | M16 |
| Application | | Profile Milling | | Shank Height (H) | 22 mm |
| Connection Diameter Machine Side (DCONMS) | 28.8 mm | Cutting Diameter Maximum (DCX) | 32 mm |
| Master Insert Identification (MIID) | RPMT10T3EN-MJ |
Product Features
| Family Description | Radius cutter series modular type (TungFlex) with Anti-Rotation System | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.615
