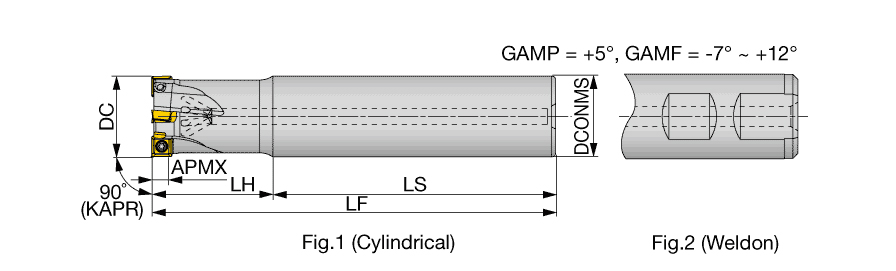

EPD05R016M16.0-03
Indexable End Mill; 16 mm Dia. × 4 mm LOC × 16 mm Shank Dia. × 110 mm OAL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 16 mm | Head Length (LH) | 20 mm |
| Cutting Diameter (DC) | 16 mm | Functional Length (LF) | 110 mm |
| Cutting Item Count (CICT) | 3 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 4 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 110 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | Shoulder Milling | | Shank Length (LS) | 90 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Cutting Diameter Maximum (DCX) | 16 mm |
| Master Insert Identification (MIID) | SDMT050204PN-MJ |
Product Features
| Family Description | Highly dense shoulder square endmills with small SDMT05 inserts | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.445
