EPV16R125U0125W02

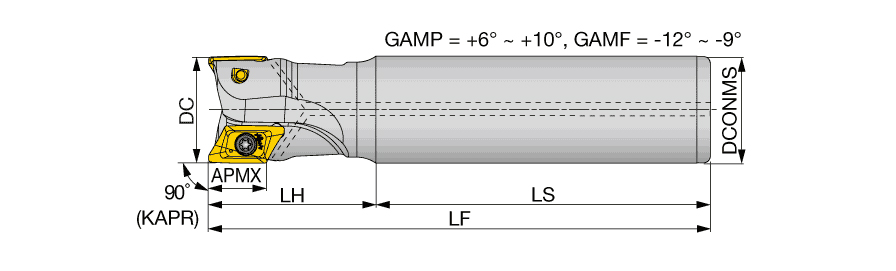

Indexable End Mill; 1-1/4″ Dia. × 0.63″ Max Depth × 1-1/4″ Shank Dia. × 6″ OAL ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1-1/4″ | Head Length (LH) | 2″ |
| Cutting Diameter (DC) | 1-1/4″ | Functional Length (LF) | 6″ |
| Cutting Item Count (CICT) | 2 | Tool Type | 90 Indexable for Aluminum |
| Depth of Cut Maximum (APMX) | 0.63″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 6″ | Measurement Type | Inch |
| Application | | Shoulder Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Shank Length (LS) | 4″ |
| Master Insert Identification (MIID) | XVCT160508R-AJ | Cutting Diameter Maximum (DCX) | 1-1/4″ |
Product Features
| Family Description | 90 deg endmills with screw clamped XVCT16 inserts for aluminum machining | Country of Origin | S.Korea |
| Remarks | Either XVCT AM inserts or XVCT AJ inserts can be used with a TPV/EPV cutter. DO NOT mix the XVCT AM and XVCT AJ inserts on the same cutter. The difference of the insert weights will deteriorate the dynamic balance of the tool, resulting in poor surface finish. |
