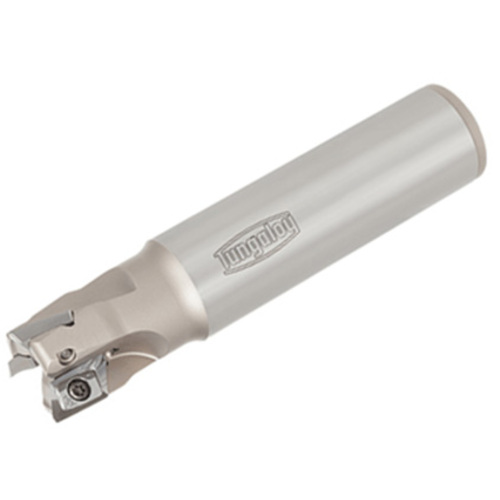

EPV16R040M32.0-03
Indexable End Mill; 40 mm Dia. × 16 mm LOC × 32 mm Shank Dia. × 170 mm OAL ; 90 Degrees

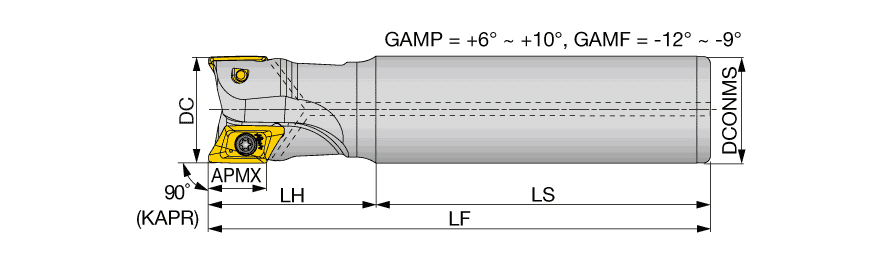

| Cutting Diameter (DC/DCX) | 40 mm | Head Length (LH) | 55 mm |
| Cutting Diameter (DC) | 40 mm | Functional Length (LF) | 170 mm |
| Cutting Item Count (CICT) | 3 | Tool Type | 90 Indexable for Aluminum |
| Depth of Cut Maximum (APMX) | 16 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 170 mm | Measurement Type | Metric |
| Application | | Shoulder Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Shank Length (LS) | 120 mm |
| Master Insert Identification (MIID) | XVCT160508R-AJ | Cutting Diameter Maximum (DCX) | 40 mm |
Product Features
| Family Description | 90 deg endmills with screw clamped XVCT16 inserts for aluminum machining | Country of Origin | S.Korea |
| Remarks | Either XVCT AM inserts or XVCT AJ inserts can be used with a TPV/EPV cutter. DO NOT mix the XVCT AM and XVCT AJ inserts on the same cutter. The difference of the insert weights will deteriorate the dynamic balance of the tool, resulting in poor surface finish. |
Shipping Info
Package Weight
2.302
