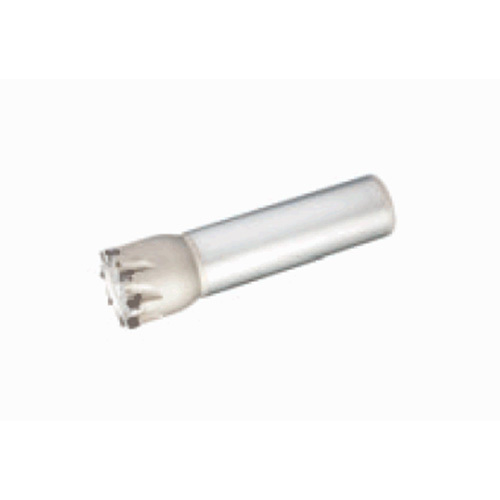

EPD05R100U0100W05
Indexable End Mill; 1″ Dia. × 0.157″ LOC × 1″ Shank Dia. × 4″ OAL ; Weldon Shank ; 90 Degrees

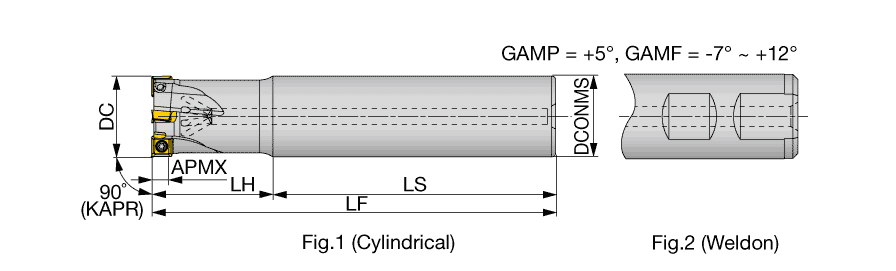

| Cutting Diameter (DC/DCX) | 1″ | Head Length (LH) | 1.72″ |
| Cutting Diameter (DC) | 1″ | Functional Length (LF) | 4″ |
| Cutting Item Count (CICT) | 5 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 0.157″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 4″ | Measurement Type | Inch |
| Shank Type | Weldon | Body Material | Steel |
| Application | | Shoulder Milling | | Shank Length (LS) | 2.28″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Cutting Diameter Maximum (DCX) | 1″ |
| Master Insert Identification (MIID) | SDMT050204PN-MJ |
Product Features
| Family Description | Highly dense shoulder square endmills with small SDMT05 inserts | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.867
