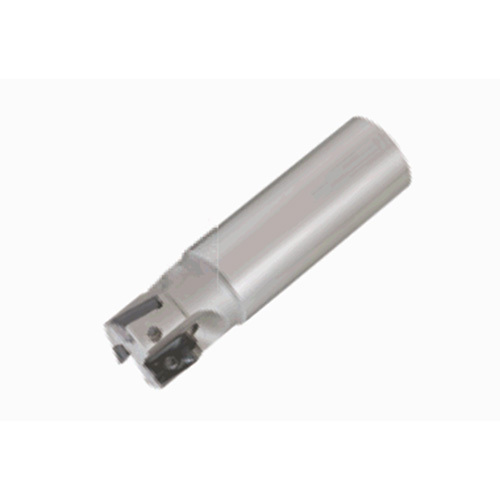

EPO18R030M32.0-02L
Indexable End Mill; 30 mm Dia. × 16.7 mm LOC × 32 mm Shank Dia. × 255 mm OAL ; Round Shank ; 90 Degrees

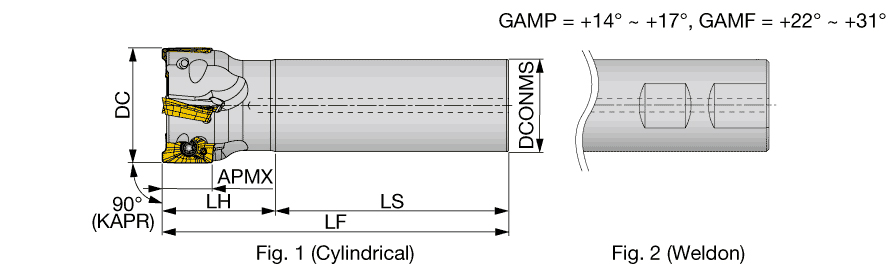

| Cutting Diameter (DC/DCX) | 30 mm | Head Length (LH) | 80 mm |
| Cutting Diameter (DC) | 30 mm | Functional Length (LF) | 255 mm |
| Cutting Item Count (CICT) | 2 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 16.7 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 255 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | Shoulder Milling | | Shank Length (LS) | 175 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Cutting Diameter Maximum (DCX) | 30 mm |
| Master Insert Identification (MIID) | AOMT180508PDPR-MJ |
Product Features
| Family Description | High precision shoulder square endmills with AOMT/AOGT18 inserts | Country of Origin | USA |
| Remarks | The DC in the table show the lengths when MJ chipbreaker is used. When AJ chipbreaker is used, the diameter is equal to the DC + 0.2 mm. |
Shipping Info
Package Weight
1524
