ERC12R125U0150-03LL
Indexable End Mill; 0.778″ Dia. × 0.236″ LOC × 1-1/2″ Shank Dia. × 12″ OAL ; Round Shank

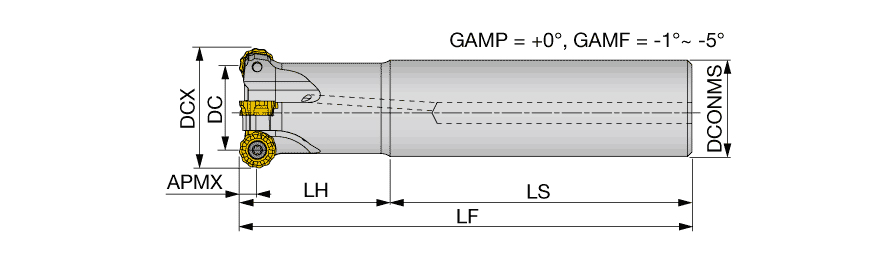

| Cutting Diameter (DC/DCX) | 0.778″ | Master Insert Identification (MIID) | RCMT1204EN-NMJ |
| Cutting Diameter (DC) | 0.778″ | Head Length (LH) | 7″ |
| Cutting Item Count (CICT) | 3 | Functional Length (LF) | 12″ |
| Depth of Cut Maximum (APMX) | 0.236″ | Tool Type | Corner rounding endmills |
| Overall Length (OAL) | 12″ | Measurement Type | Inch |
| Shank Type | Round | Body Material | Steel |
| Application | | Profile Milling | | Shank Length (LS) | 5″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Cutting Diameter Maximum (DCX) | 1-1/4″ |
Product Features
| Family Description | Indexable endmills with button insert of 8mm or 6mm radius | Country of Origin | GERMANY |
