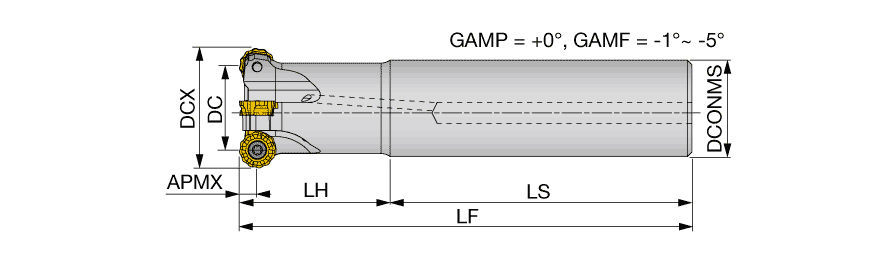

ERC12R032M32.0-03
Indexable End Mill; 20 mm Dia. × 6 mm LOC × 32 mm Shank Dia. × 150 mm OAL ; Round Shank
| Cutting Diameter (DC/DCX) | 20 mm | Master Insert Identification (MIID) | RCMT1204EN-NMJ |
| Cutting Diameter (DC) | 20 mm | Head Length (LH) | 70 mm |
| Cutting Item Count (CICT) | 3 | Functional Length (LF) | 150 mm |
| Depth of Cut Maximum (APMX) | 6 mm | Tool Type | Corner rounding endmills |
| Overall Length (OAL) | 150 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | Profile Milling | | Shank Length (LS) | 80 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Cutting Diameter Maximum (DCX) | 32 mm |
Product Features
| Family Description | Indexable endmills with button insert of 8mm or 6mm radius | Country of Origin | GERMANY |
Shipping Info
Package Weight
1.916
