EPO18R150U0125W04
Indexable End Mill; 1-1/2″ Dia. × 0.657″ LOC × 1-1/4″ Shank Dia. × 4-1/2″ OAL ; Weldon Shank ; 90 Degrees

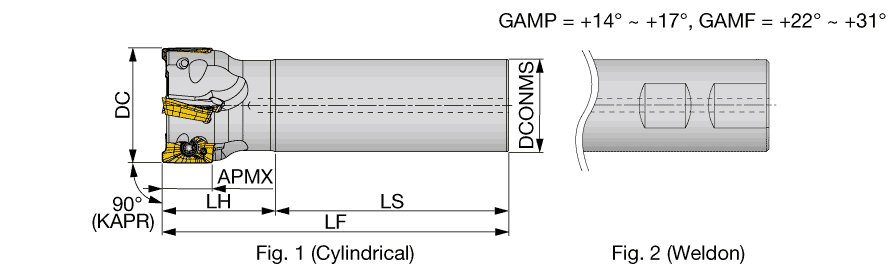

| Cutting Diameter (DC/DCX) | 1-1/2″ | Head Length (LH) | 2-1/4″ |
| Cutting Diameter (DC) | 1-1/2″ | Functional Length (LF) | 4-1/2″ |
| Cutting Item Count (CICT) | 4 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 0.657″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 4-1/2″ | Measurement Type | Inch |
| Shank Type | Weldon | Body Material | Steel |
| Application | | Shoulder Milling | | Shank Length (LS) | 2-1/4″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Cutting Diameter Maximum (DCX) | 1-1/2″ |
| Master Insert Identification (MIID) | AOMT180508PDPR-MJ |
Product Features
| Family Description | High precision shoulder square endmills with AOMT/AOGT18 inserts | Country of Origin | Poland |
| Remarks | The DC in the table show the lengths when MJ chipbreaker is used. When AJ chipbreaker is used, the diameter is equal to the DC + 0.2 mm. |
Shipping Info
Package Weight
2.23
