TASN13U2.00B0.75R05
Indexable Face Mill; 2.5512″ Dia. × 3/4″ Shank Dia. × 1.575″ OAL × 0.236″ LOC ; 5 Inserts

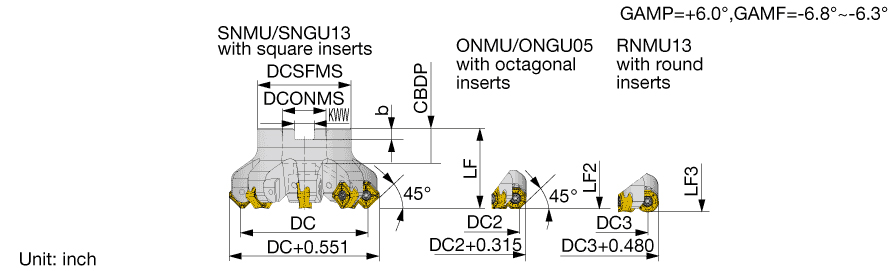

| Cutting Diameter (DC/DCX) | 2.5512″ | Master Insert Identification (MIID) | SNMU1307ANEN-MJ |
| Cutting Diameter (DC) | 2″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 2.5512″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 5 | Application | | Face Milling | |
| Depth of Cut Maximum (APMX) | 0.236″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Functional Length (LF) | 1.575″ |
| Overall Length (OAL) | 1.575″ | Tool Type | CUTTER - BORE TYPE |
Product Features
| Family Description | 45 deg face milling cutters with double-sided square, octagon or radius inserts; Bore type | Country of Origin | Japan |
| Remarks | APMX may vary with insert type. |
Shipping Info
Package Weight
1.188
