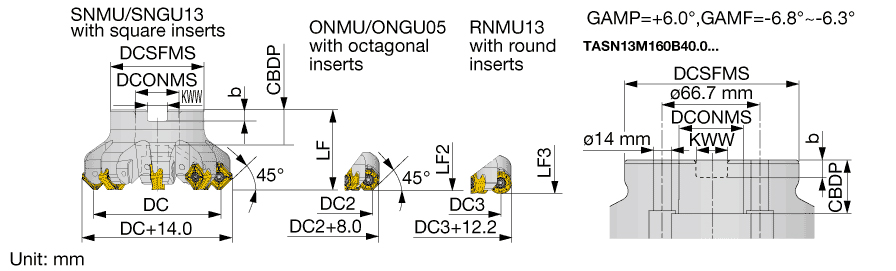

TASN13J125B38.1R07
Indexable Face Mill; 139 mm Dia. × 38.1 mm Shank Dia. × 63 mm OAL × 6 mm LOC ; 7 Inserts
| Cutting Diameter (DC/DCX) | 139 mm | Master Insert Identification (MIID) | SNMU1307ANEN-MJ |
| Cutting Diameter (DC) | 125 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 139 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 7 | Application | | Face Milling | |
| Depth of Cut Maximum (APMX) | 6 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 38.1 mm | Functional Length (LF) | 63 mm |
| Overall Length (OAL) | 63 mm | Tool Type | CUTTER - BORE TYPE |
Product Features
| Family Description | 45 deg face milling cutters with double-sided square, octagon or radius inserts; Bore type | Country of Origin | JAPAN |
| Remarks | APMX may vary with insert type. |
Shipping Info
Package Weight
7.981
