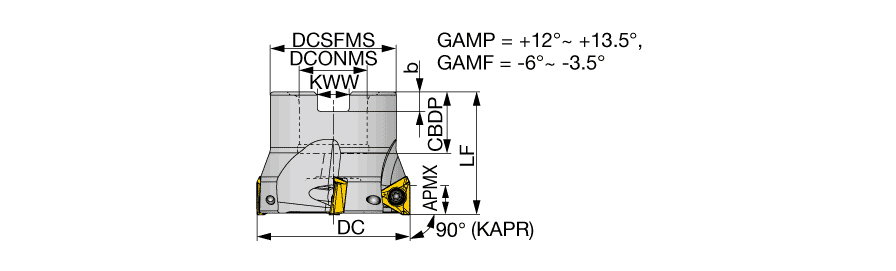

TPA15R160M50.8-10N
Indexable Face Mill; 160 mm Dia. × 50.8 mm Shank Dia. × 63 mm OAL × 15 mm LOC ; 10 Inserts
| Cutting Diameter (DC/DCX) | 160 mm | Master Insert Identification (MIID) | TOMT150608PDER-MJ |
| Cutting Diameter (DC) | 160 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 160 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 10 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 15 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 50.8 mm | Functional Length (LF) | 63 mm |
| Overall Length (OAL) | 63 mm | Tool Type | CUTTER - BORE TYPE |
Product Features
| Family Description | High precision shoulder square mills with triangular inserts | Country of Origin | JAPAN |
Shipping Info
Package Weight
10.582
