TPA06R050M22.0E08

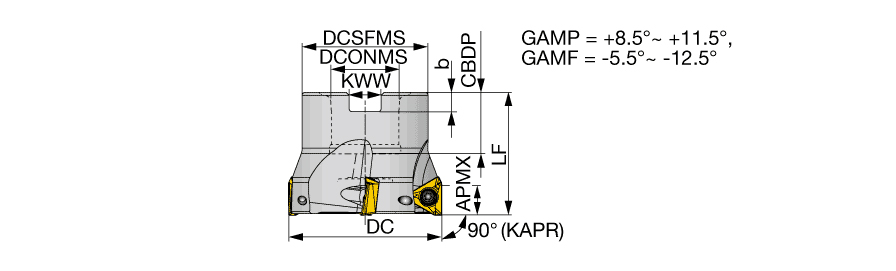

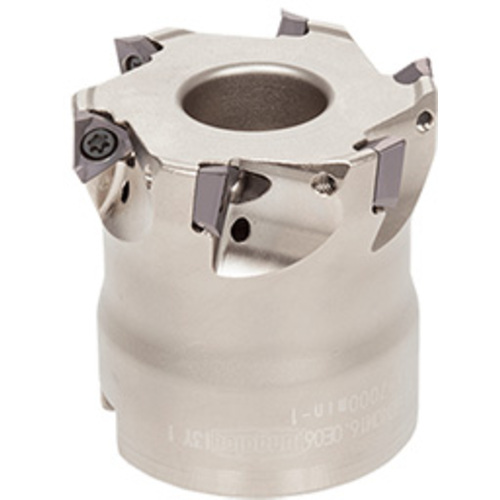

Indexable Face Mill; 50 mm Dia. × 22 mm Shank Dia. × 40 mm OAL × 6 mm LOC ; 8 Inserts
| Cutting Diameter (DC/DCX) | 50 mm | Master Insert Identification (MIID) | TOMT060304PDER-MJ |
| Cutting Diameter (DC) | 50 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 50 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 8 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 6 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Functional Length (LF) | 40 mm |
| Overall Length (OAL) | 40 mm | Tool Type | 90 Facemills |
Product Features
| Family Description | High precision shoulder square mills with triangular inserts | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.939
