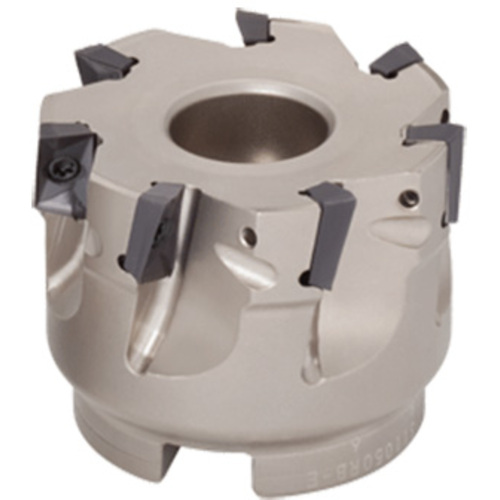

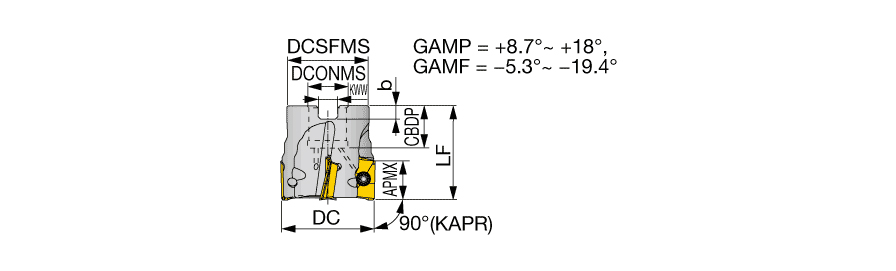

TPO11R063M22.0E08
Indexable Face Mill; 63 mm Dia. × 22 mm Shank Dia. × 45 mm OAL × 10.6 mm LOC ; 8 Inserts
| Cutting Diameter (DC/DCX) | 63 mm | Master Insert Identification (MIID) | ASMT11T308PDPR-MJ |
| Cutting Diameter (DC) | 63 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 63 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 8 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 10.6 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Functional Length (LF) | 45 mm |
| Overall Length (OAL) | 45 mm | Tool Type | 90 Facemills |
Product Features
| Family Description | High precision shoulder square mills with ASMT/ASGT11inserts | Country of Origin | JAPAN |
| Remarks | When using inserts with corner radius RE >= 2.0 mm, standard cutter bodies have to be modified "R". Please click on "More Info". |
Shipping Info
Package Weight
1.532
Related Documentation
When using inserts with corner radius RE >= 2.0 mm, "R" of standard cutter bodies have to be modified to 2.0 mm.
