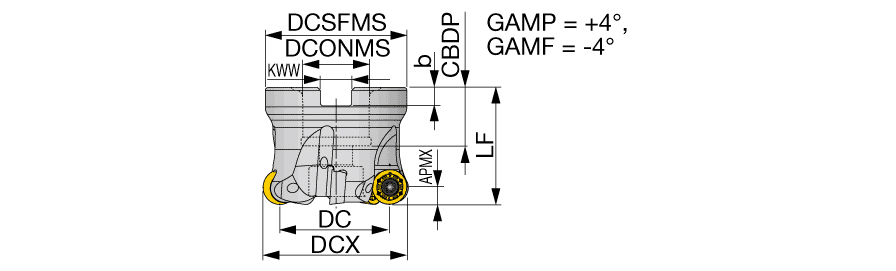

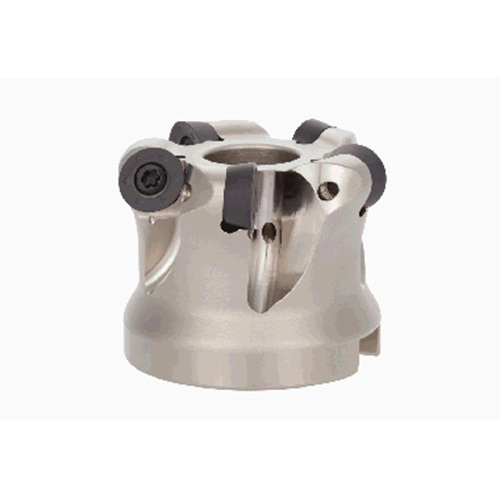

TRP16R063M22.0E05
Indexable Face Mill; 63 mm Dia. × 22 mm Shank Dia. × 40 mm OAL × 8 mm LOC ; 5 Inserts
| Cutting Diameter (DC/DCX) | 63 mm | Master Insert Identification (MIID) | RPMT1606EN-MJ |
| Cutting Diameter (DC) | 47 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 63 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 5 | Application | | Profile Milling | |
| Depth of Cut Maximum (APMX) | 8 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Functional Length (LF) | 40 mm |
| Overall Length (OAL) | 40 mm | Tool Type | Round corner cutters |
Product Features
| Family Description | FixRMill Radius cutter Series Bore type with Anti-Rotation System | Country of Origin | JAPAN |
Shipping Info
Package Weight
1.446
