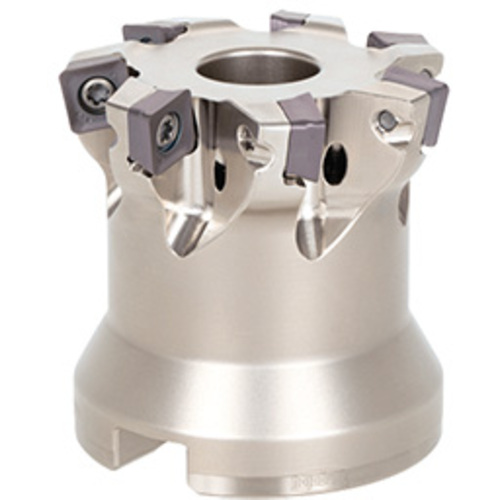

TXSW09M042B16.0R05
Indexable Face Mill; 42 mm Dia. × 16 mm Shank Dia. × 40 mm OAL × 1.5 mm LOC ; 5 Inserts

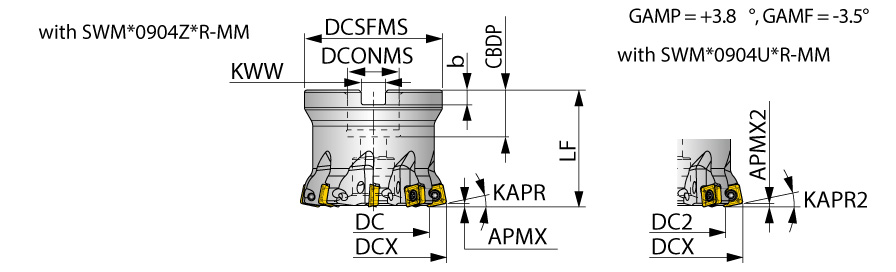

| Cutting Diameter (DC/DCX) | 42 mm | Master Insert Identification (MIID) | SWMT0904ZER-MM |
| Cutting Diameter (DC) | 42 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 42 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 5 | Application | | High Feed Milling | |
| Depth of Cut Maximum (APMX) | 1.5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Functional Length (LF) | 40 mm |
| Overall Length (OAL) | 40 mm | Tool Type | Fast Feed Endmill |
Product Features
| Family Description | High-feed milling cutters with 4-corner single sided inserts; Bore type | Country of Origin | JAPAN |
| Remarks | APMX may vary with insert type. |
