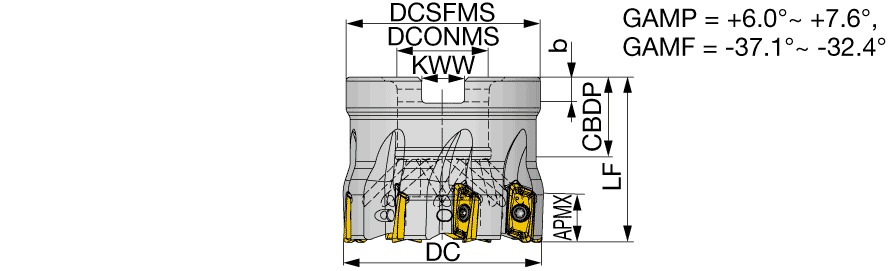

TPAV12U1.50B0.50R05
Indexable Face Mill; 1-1/2″ Dia. × 1/2″ Shank Dia. × 1.575″ OAL × 0.453″ LOC ; 5 Inserts
| Cutting Diameter (DC/DCX) | 1-1/2″ | Master Insert Identification (MIID) | AVMT120408PDER-MM |
| Cutting Diameter (DC) | 1-1/2″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 1-1/2″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 5 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 0.453″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Functional Length (LF) | 1.575″ |
| Overall Length (OAL) | 1.575″ |
Product Features

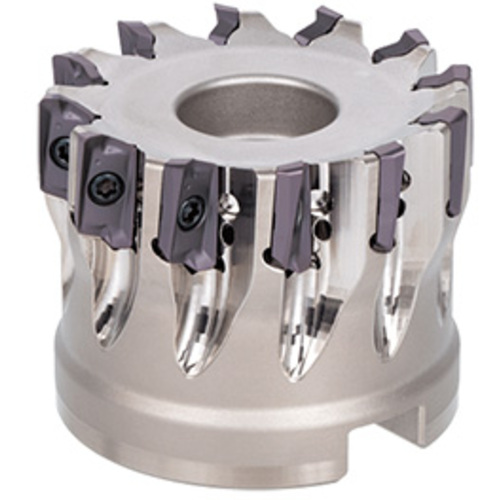

| Family Description | Square shoulder mill, bore type, with screw clamp system | Country of Origin | JAPAN |
| Remarks | APMX may vary with insert type. For APMX, please refer to insert size table. When using inserts with corner radius RE >= 2.0 mm, standard cutter bodies have to be modified "R". Please click on "More Info". Note: Inserts with a PCD or a corner radius of 2 or greater are not suitable for ramping, plunging and helical interpolation application. |
Shipping Info
Package Weight
0.000
Related Documentation
When using inserts with corner radius RE >= 2.0 mm, "R" of standard cutter bodies have to be modified to 2.0 mm.
