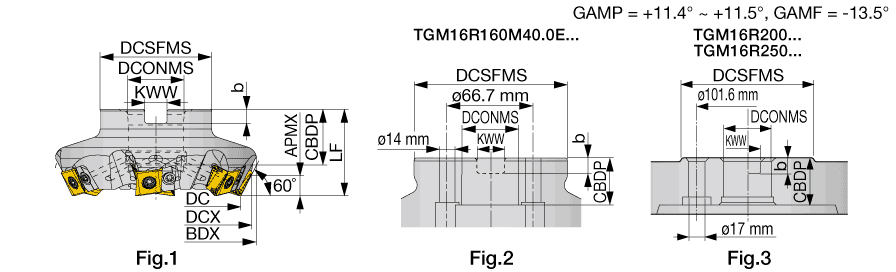

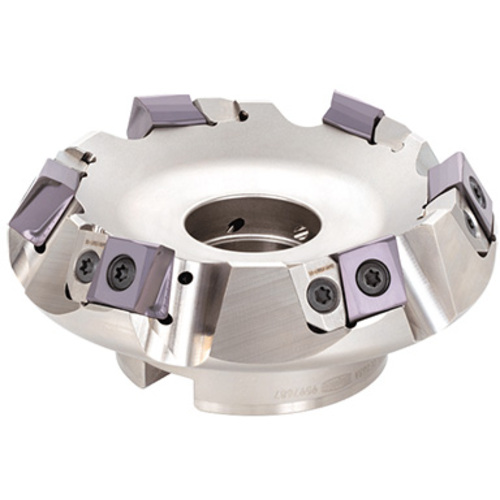

TGM16R250M47.6-12SA
Indexable Face Mill; 265.3 mm Dia. × 47.625 mm Shank Dia. × 63 mm OAL × 12.4 mm LOC ; 12 Inserts
| Cutting Diameter (DC/DCX) | 265.3 mm | Master Insert Identification (MIID) | LMMU160916PNER-MJ |
| Cutting Diameter (DC) | 250 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 265.3 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 12 | Application | | Face Milling | |
| Depth of Cut Maximum (APMX) | 12.4 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 47.625 mm | Functional Length (LF) | 63 mm |
| Overall Length (OAL) | 63 mm |
Product Features
| Family Description | 60 deg face mill for LMMU double-sided tangential inserts, with shims for extra reliability | Country of Origin | Japan |
